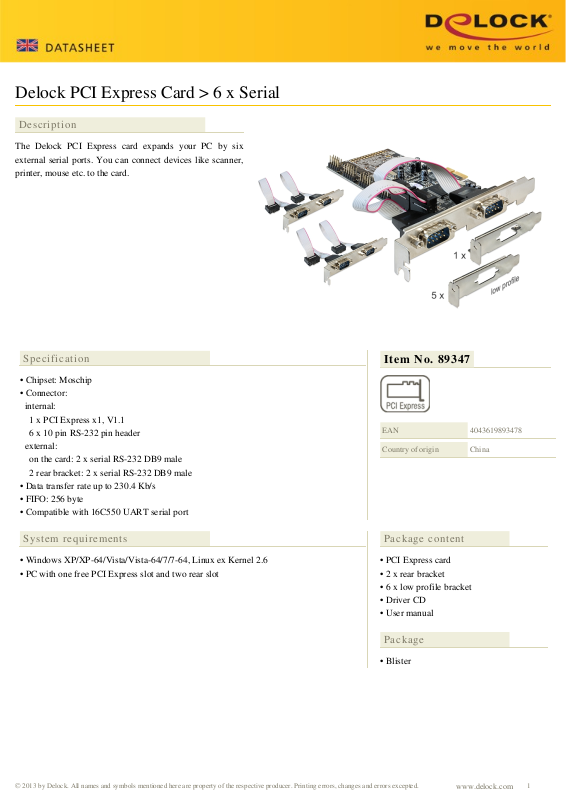

DeLOCK 89347 User Manual
Delock PCI Express Card > 6 x Serial
Description
The Delock PCI Express card expands your PC by six
external serial ports. You can connect devices like scanner,
printer, mouse etc. to the card.
Specification
• Chipset: Moschip
• Connector:
internal:
1 x PCI Express x1, V1.1
6 x 10 pin RS-232 pin header
external:
on the card: 2 x serial RS-232 DB9 male
2 rear bracket: 2 x serial RS-232 DB9 male
• Data transfer rate up to 230.4 Kb/s
• FIFO: 256 byte
• Compatible with 16C550 UART serial port
Item No. 89347
EAN
Country of origin
4043619893478
China
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6
• PC with one free PCI Express slot and two rear slot
Package content
• PCI Express card
• 2 x rear bracket
• 6 x low profile bracket
• Driver CD
• User manual
Package
• Blister
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1
Images
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
Powered by TCPDF (www.tcpdf.org)
www.delock.com
