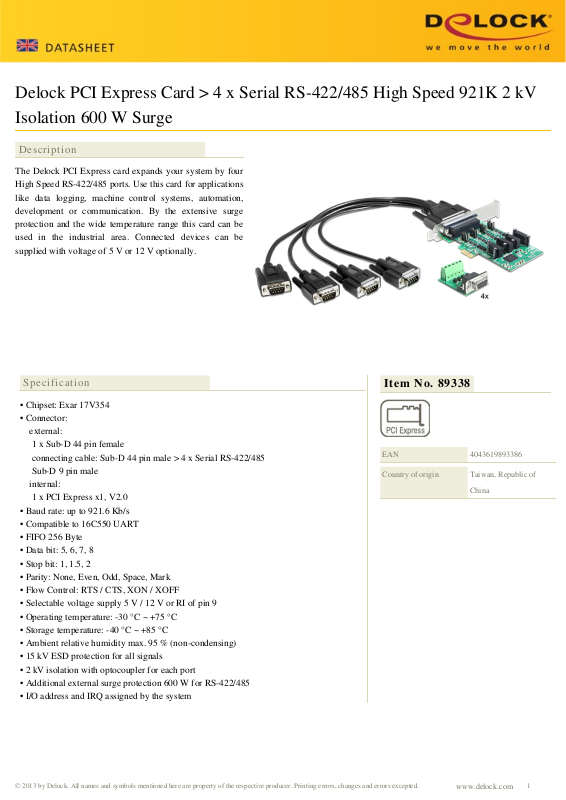

Delock PCI Express Card > 4 x Serial RS-422/485 High Speed 921K 2 kV Isolation 600 W Surge

Description

The Delock PCI Express card expands your system by four High Speed RS-422/485 ports. Use this card for applications like data logging, machine control systems, automation, development or communication. By the extensive surge protection and the wide temperature range this card can be used in the industrial area. Connected devices can be supplied with voltage of 5 V or 12 V optionally.

Specification

• Chipset: Exar 17V354

• Connector: external: 1 x Sub-D 44 pin female connecting cable: Sub-D 44 pin male > 4 x Serial RS-422/485 Sub-D 9 pin male internal: 1 x PCI Express x1, V2.0

• Baud rate: up to 921.6 Kb/s

• Compatible to 16C550 UART

• FIFO 256 Byte

• Data bit: 5, 6, 7, 8

• Stop bit: 1, 1.5, 2

• Parity: None, Even, Odd, Space, Mark

• Flow Control: RTS / CTS, XON / XOFF

• Selectable voltage supply 5 V / 12 V or RI of pin 9

• Operating temperature: -30 °C ~ +75 °C

• Storage temperature: -40 °C ~ +85 °C

• Ambient relative humidity max. 95 % (non-condensing)

• 15 kV ESD protection for all signals

• 2 kV isolation with optocoupler for each port

• Additional external surge protection 600 W for RS-422/485

• I/O address and IRQ assigned by the system

Item No. 89338

EAN

Country of origin

4043619893386

Taiwan, Republic of China

www.delock.com

System requirements

Package content

• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6

• PC with a free PCI Express slot

Images

• PCI Express card

• Low profile bracket

• 1 serial connecting cable (ca. 30 cm)

• 4 x 5 pin Terminal Block to serial Sub-D 9 pin with integrated surge protection

• Driver CD

• User manual

Package

• Box
