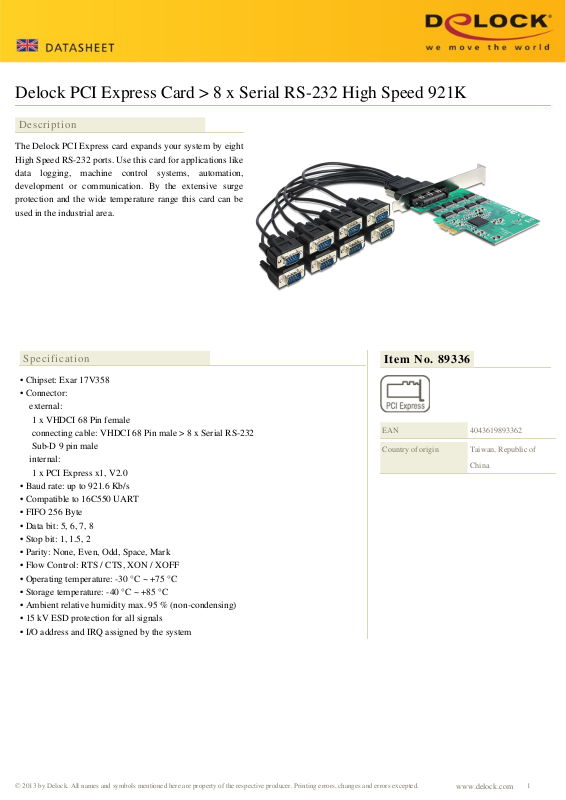

DeLOCK 89336 User Manual
Delock PCI Express Card > 8 x Serial RS-232 High Speed 921K
Description
The Delock PCI Express card expands your system by eight
High Speed RS-232 ports. Use this card for applications like
data logging, machine control systems, automation,
development or communication. By the extensive surge
protection and the wide temperature range this card can be
used in the industrial area.
Specification
• Chipset: Exar 17V358
• Connector:
external:
1 x VHDCI 68 Pin female
connecting cable: VHDCI 68 Pin male > 8 x Serial RS-232
Sub-D 9 pin male
internal:
1 x PCI Express x1, V2.0
• Baud rate: up to 921.6 Kb/s
• Compatible to 16C550 UART
• FIFO 256 Byte
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS / CTS, XON / XOFF
• Operating temperature: -30 °C ~ +75 °C
• Storage temperature: -40 °C ~ +85 °C
• Ambient relative humidity max. 95 % (non-condensing)
• 15 kV ESD protection for all signals
• I/O address and IRQ assigned by the system
Item No. 89336
EAN
Country of origin
4043619893362
Taiwan, Republic of
China
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1
System requirements
Package content
• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6
• PC with a free PCI Express slot
Images
• PCI Express card
• Low profile bracket
• 1 serial connecting cable (ca. 30 cm)
• Driver CD
• User manual
Package
• Box
