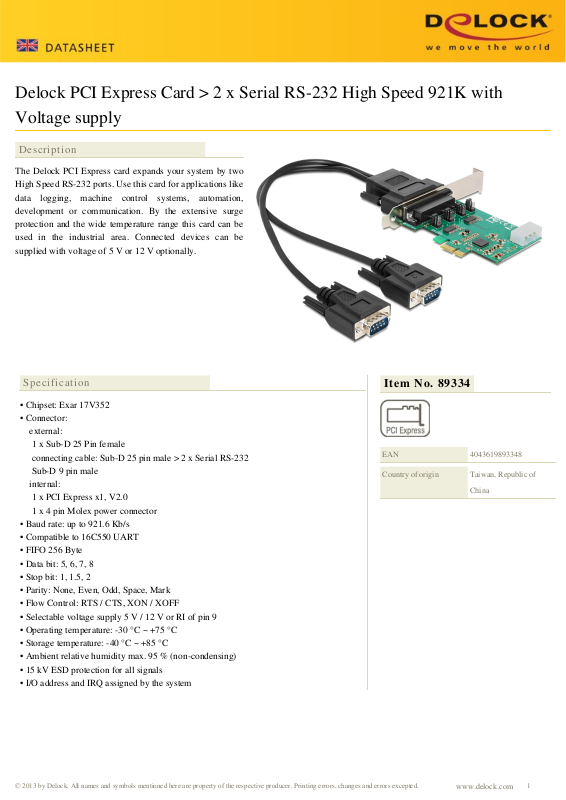

Delock PCI Express Card > 2 x Serial RS-232 High Speed 921K with
Voltage supply

Description

The Delock PCI Express card expands your system by two
High Speed RS-232 ports. Use this card for applications like
data logging, machine control systems, automation,
development or communication. By the extensive surge
protection and the wide temperature range this card can be
used in the industrial area. Connected devices can be
supplied with voltage of 5 V or 12 V optionally.

Specification

• Chipset: Exar 17V352

• Connector:
external:
1 x Sub-D 25 Pin female
connecting cable: Sub-D 25 pin male > 2 x Serial RS-232
Sub-D 9 pin male
internal:
1 x PCI Express x1, V2.0
1 x 4 pin Molex power connector

• Baud rate: up to 921.6 Kb/s

• Compatible to 16C550 UART

• FIFO 256 Byte

• Data bit: 5, 6, 7, 8

• Stop bit: 1, 1.5, 2

• Parity: None, Even, Odd, Space, Mark

• Flow Control: RTS / CTS, XON / XOFF

• Selectable voltage supply 5 V / 12 V or RI of pin 9

• Operating temperature: -30 °C ~ +75 °C

• Storage temperature: -40 °C ~ +85 °C

• Ambient relative humidity max. 95 % (non-condensing)

• 15 kV ESD protection for all signals

• I/O address and IRQ assigned by the system

Item No. 89334

EAN

Country of origin

4043619893348

Taiwan, Republic of
China

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.

www.delock.com

1

System requirements

Package content

• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6

• PC with a free PCI Express slot

• Power supply with a free Molex power connector

Images

• PCI Express card

• Low profile bracket

• 1 serial connecting cable (ca. 30 cm)

• Driver CD

• User manual

Package

• Box
