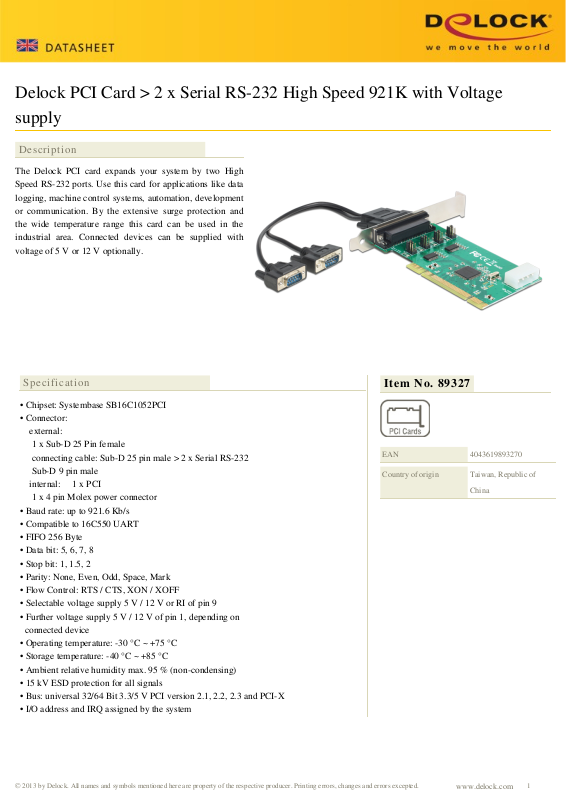

DeLOCK 89327 User Manual
Delock PCI Card > 2 x Serial RS-232 High Speed 921K with Voltage
supply
Description
The Delock PCI card expands your system by two High
Speed RS-232 ports. Use this card for applications like data
logging, machine control systems, automation, development
or communication. By the extensive surge protection and
the wide temperature range this card can be used in the
industrial area. Connected devices can be supplied with
voltage of 5 V or 12 V optionally.
Specification
• Chipset: Systembase SB16C1052PCI
• Connector:
external:
1 x Sub-D 25 Pin female
connecting cable: Sub-D 25 pin male > 2 x Serial RS-232
Sub-D 9 pin male
internal: 1 x PCI
1 x 4 pin Molex power connector
• Baud rate: up to 921.6 Kb/s
• Compatible to 16C550 UART
• FIFO 256 Byte
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS / CTS, XON / XOFF
• Selectable voltage supply 5 V / 12 V or RI of pin 9
• Further voltage supply 5 V / 12 V of pin 1, depending on
connected device
• Operating temperature: -30 °C ~ +75 °C
• Storage temperature: -40 °C ~ +85 °C
• Ambient relative humidity max. 95 % (non-condensing)
• 15 kV ESD protection for all signals
• Bus: universal 32/64 Bit 3.3/5 V PCI version 2.1, 2.2, 2.3 and PCI-X
• I/O address and IRQ assigned by the system
Item No. 89327
EAN
Country of origin
4043619893270
Taiwan, Republic of
China
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1
System requirements
Package content
• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6
• PC with a free PCI slot
• Power supply with a free Molex power connector
Images
• PCI card
• Low profile bracket
• 1 serial connecting cable (ca. 30 cm)
• Driver CD
• User manual
Package
• Box
