DeLOCK 89326 User Manual

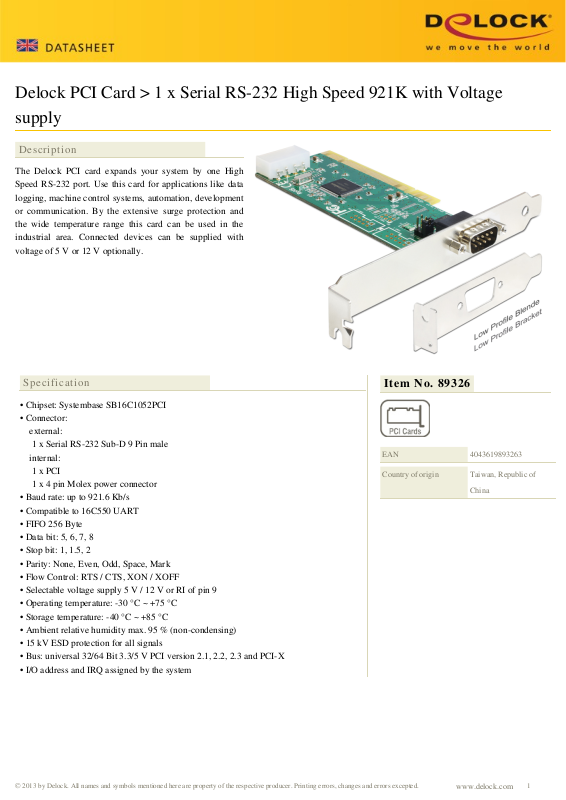

Delock PCI Card > 1 x Serial RS-232 High Speed 921K with Voltage
supply

Description

The Delock PCI card expands your system by one High
Speed RS-232 port. Use this card for applications like data
logging, machine control systems, automation, development
or communication. By the extensive surge protection and
the wide temperature range this card can be used in the
industrial area. Connected devices can be supplied with
voltage of 5 V or 12 V optionally.

Specification

• Chipset: Systembase SB16C1052PCI

• Connector:
external:
1 x Serial RS-232 Sub-D 9 Pin male
internal:
1 x PCI
1 x 4 pin Molex power connector

• Baud rate: up to 921.6 Kb/s

• Compatible to 16C550 UART

• FIFO 256 Byte

• Data bit: 5, 6, 7, 8

• Stop bit: 1, 1.5, 2

• Parity: None, Even, Odd, Space, Mark

• Flow Control: RTS / CTS, XON / XOFF

• Selectable voltage supply 5 V / 12 V or RI of pin 9

• Operating temperature: -30 °C ~ +75 °C

• Storage temperature: -40 °C ~ +85 °C

• Ambient relative humidity max. 95 % (non-condensing)

• 15 kV ESD protection for all signals

• Bus: universal 32/64 Bit 3.3/5 V PCI version 2.1, 2.2, 2.3 and PCI-X

• I/O address and IRQ assigned by the system

Item No. 89326

EAN

Country of origin

4043619893263

Taiwan, Republic of
China

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.

www.delock.com

1

System requirements

Package content

• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6

• PC with a free PCI slot

• Power supply with a free Molex power connector

Images

• PCI card

• Low profile bracket

• Driver CD

• User manual

Package

• Box
