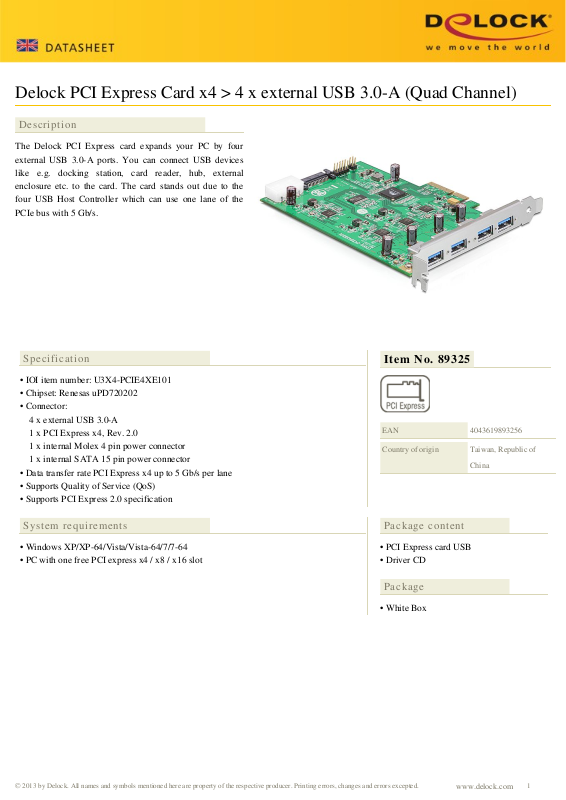

DeLOCK 89325 User Manual

Delock PCI Express Card x4 > 4 x external USB 3.0-A (Quad Channel)

Description

The Delock PCI Express card expands your PC by four
external USB 3.0-A ports. You can connect USB devices
like e.g. docking station, card reader, hub, external
enclosure etc. to the card. The card stands out due to the
four USB Host Controller which can use one lane of the
PCIe bus with 5 Gb/s.

Specification

• IOI item number: U3X4-PCIE4XE101

• Chipset: Renesas uPD720202

• Connector:
4 x external USB 3.0-A
1 x PCI Express x4, Rev. 2.0
1 x internal Molex 4 pin power connector
1 x internal SATA 15 pin power connector

• Data transfer rate PCI Express x4 up to 5 Gb/s per lane

• Supports Quality of Service (QoS)

• Supports PCI Express 2.0 specification

Item No. 89325

EAN

Country of origin

4043619893256

Taiwan, Republic of
China

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64

• PC with one free PCI express x4 / x8 / x16 slot

Package content

• PCI Express card USB

• Driver CD

Package

• White Box

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.

Powered by TCPDF (www.tcpdf.org)
