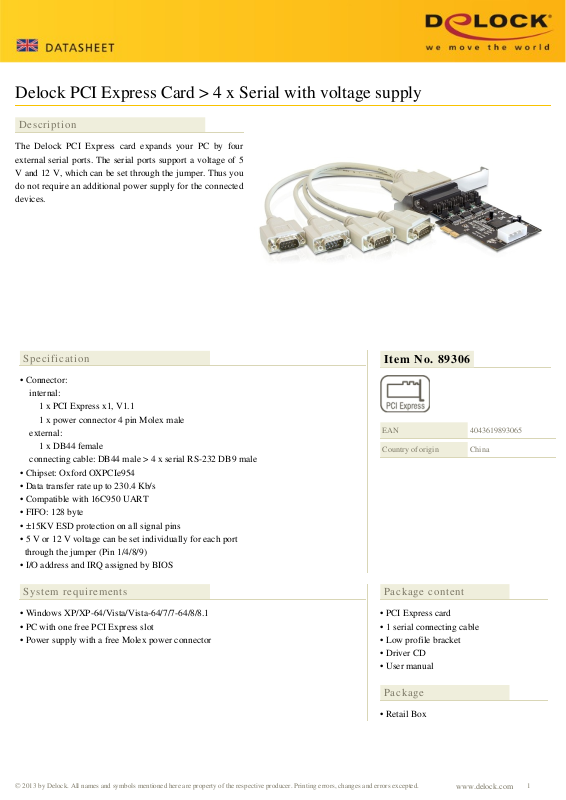

DeLOCK 89306 User Manual

Delock PCI Express Card > 4 x Serial with voltage supply

Description

The Delock PCI Express card expands your PC by four
external serial ports. The serial ports support a voltage of 5
V and 12 V, which can be set through the jumper. Thus you
do not require an additional power supply for the connected
devices.

Specification

• Connector:
internal:
1 x PCI Express x1, V1.1
1 x power connector 4 pin Molex male
external:
1 x DB44 female
connecting cable: DB44 male > 4 x serial RS-232 DB9 male

• Chipset: Oxford OXPCIe954

• Data transfer rate up to 230.4 Kb/s

• Compatible with 16C950 UART

• FIFO: 128 byte

• ±15KV ESD protection on all signal pins

• 5 V or 12 V voltage can be set individually for each port
through the jumper (Pin 1/4/8/9)

• I/O address and IRQ assigned by BIOS

Item No. 89306

EAN

Country of origin

4043619893065

China

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8.1

• PC with one free PCI Express slot

• Power supply with a free Molex power connector

Package content

• PCI Express card

• 1 serial connecting cable

• Low profile bracket

• Driver CD

• User manual

Package

• Retail Box
