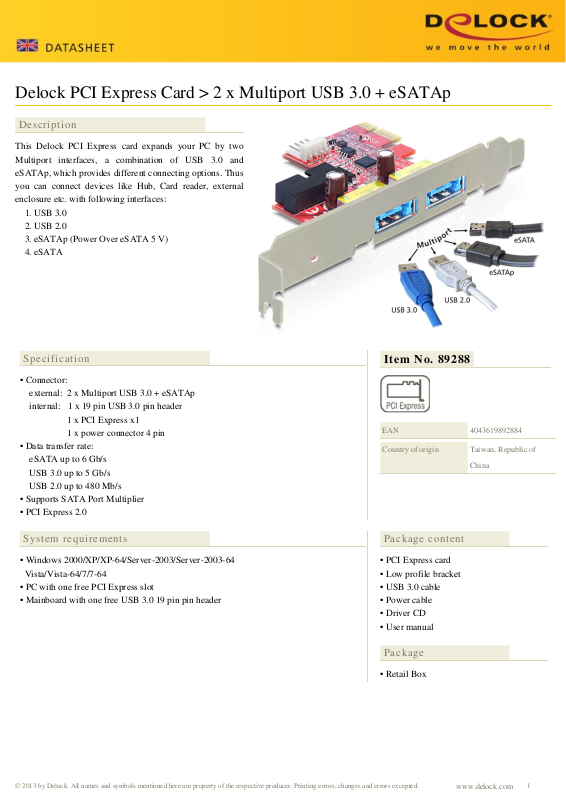

DeLOCK 89288 User Manual
Delock PCI Express Card > 2 x Multiport USB 3.0 + eSATAp
Description
This Delock PCI Express card expands your PC by two
Multiport interfaces, a combination of USB 3.0 and
eSATAp, which provides different connecting options. Thus
you can connect devices like Hub, Card reader, external
enclosure etc. with following interfaces:
1. USB 3.0
2. USB 2.0
3. eSATAp (Power Over eSATA 5 V)
4. eSATA
Specification
• Connector:
external: 2 x Multiport USB 3.0 + eSATAp
internal: 1 x 19 pin USB 3.0 pin header
1 x PCI Express x1
1 x power connector 4 pin
• Data transfer rate:
eSATA up to 6 Gb/s
USB 3.0 up to 5 Gb/s
USB 2.0 up to 480 Mb/s
• Supports SATA Port Multiplier
• PCI Express 2.0
Item No. 89288
EAN
Country of origin
4043619892884
Taiwan, Republic of
China
System requirements
• Windows 2000/XP/XP-64/Server-2003/Server-2003-64
Vista/Vista-64/7/7-64
• PC with one free PCI Express slot
• Mainboard with one free USB 3.0 19 pin pin header
Package content
• PCI Express card
• Low profile bracket
• USB 3.0 cable
• Power cable
• Driver CD
• User manual
Package
• Retail Box
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
