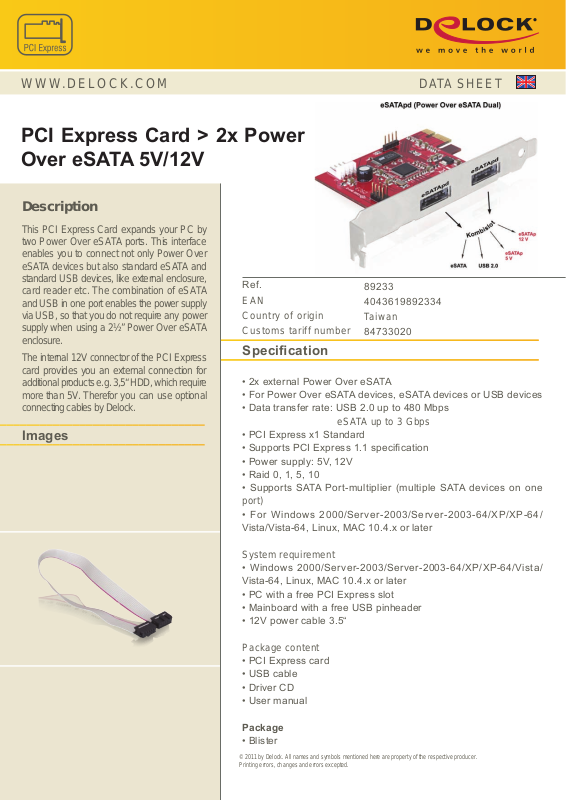

DeLOCK 89233 User Manual

WWW.DELOCK.COM

PCI Express Card > 2x Power Over eSATA 5V/12V

Description

This PCI Express Card expands your PC by two Power Over eSATA ports. This interface enables you to connect not only Power Over eSATA devices but also standard eSATA and standard USB devices, like external enclosure, card reader etc. The combination of eSATA and USB in one port enables the power supply via USB, so that you do not require any power supply when using a 2½” Power Over eSATA enclosure.

The internal 12V connector of the PCI Express card provides you an external connection for additional products e.g. 3,5“ HDD, which require more than 5V. Therefor you can use optional connecting cables by Delock.

Images

Ref.

EAN Country of origin Customs tariff number

Specication

• 2x external Power Over eSATA

• For Power Over eSATA devices, eSATA devices or USB devices

• Data transfer rate: USB 2.0 up to 480 Mbps

eSATA up to 3 Gbps

• PCI Express x1 Standard

• Supports PCI Express 1.1 specication

• Power supply: 5V, 12V

• Raid 0, 1, 5, 10

• Supports SATA Port-multiplier (multiple SATA devices on one

port)

• For Windows 2000/Server-2003/Server-2003-64/XP/XP-64/ Vista/Vista-64, Linux, MAC 10.4.x or later

DATA SHEET

89233

4043619892334

Taiwan

84733020

System requirement

• Windows 2000/Server-2003/Server-2003-64/XP/XP-64/Vista/ Vista-64, Linux, MAC 10.4.x or later

• PC with a free PCI Express slot

• Mainboard with a free USB pinheader

• 12V power cable 3.5“

Package content

• PCI Express card

• USB cable

• Driver CD

• User manual

Package

• Blister
