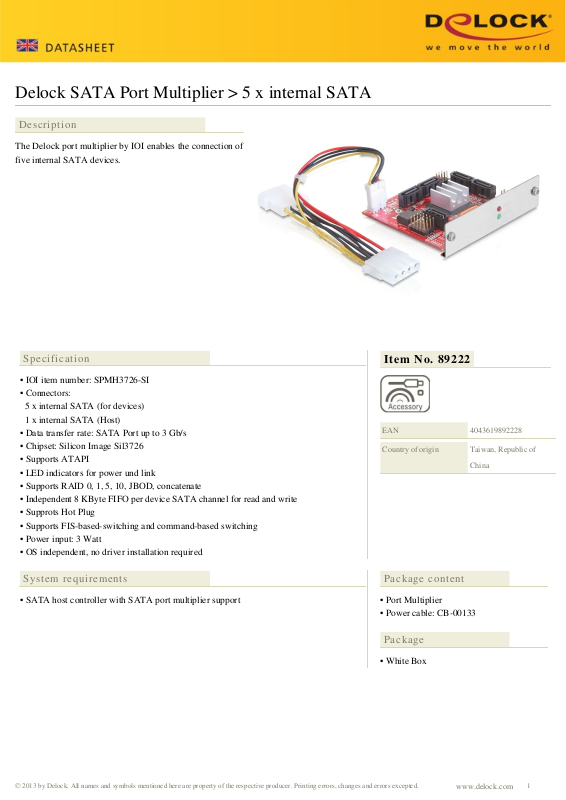

Delock SATA Port Multiplier > 5 x internal SATA

Description

The Delock port multiplier by IOI enables the connection of
five internal SATA devices.

Specification

• IOI item number: SPMH3726-SI

• Connectors:
5 x internal SATA (for devices)
1 x internal SATA (Host)

• Data transfer rate: SATA Port up to 3 Gb/s

• Chipset: Silicon Image Sil3726

• Supports ATAPI

• LED indicators for power und link

• Supports RAID 0, 1, 5, 10, JBOD, concatenate

• Independent 8 KByte FIFO per device SATA channel for read and write

• Supprots Hot Plug

• Supports FIS-based-switching and command-based switching

• Power input: 3 Watt

• OS independent, no driver installation required

Item No. 89222

EAN

Country of origin

4043619892228

Taiwan, Republic of
China

System requirements

• SATA host controller with SATA port multiplier support

Package content

• Port Multiplier

• Power cable: CB-00133

Package

• White Box
