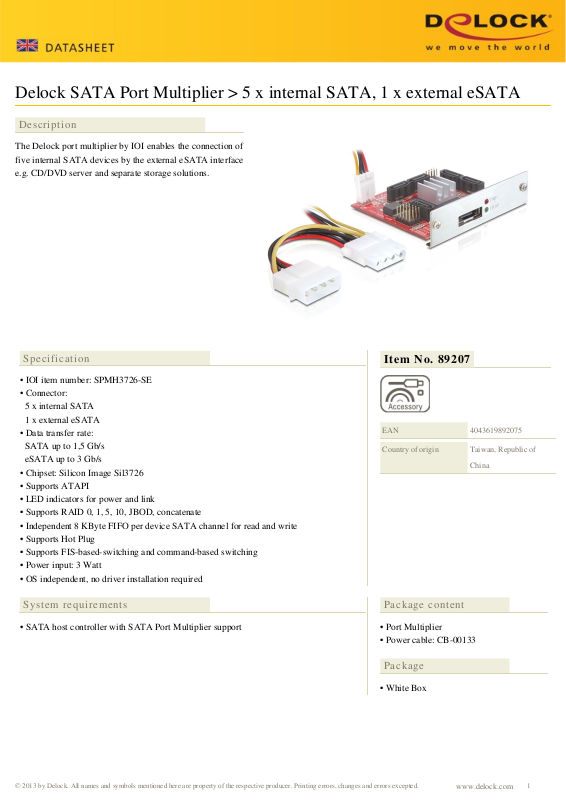

DeLOCK 89207 User Manual

Delock SATA Port Multiplier > 5 x internal SATA, 1 x external eSATA

Description

The Delock port multiplier by IOI enables the connection of
five internal SATA devices by the external eSATA interface
e.g. CD/DVD server and separate storage solutions.

Specification

• IOI item number: SPMH3726-SE

• Connector:
5 x internal SATA
1 x external eSATA

• Data transfer rate:
SATA up to 1,5 Gb/s
eSATA up to 3 Gb/s

• Chipset: Silicon Image Sil3726

• Supports ATAPI

• LED indicators for power and link

• Supports RAID 0, 1, 5, 10, JBOD, concatenate

• Independent 8 KByte FIFO per device SATA channel for read and write

• Supports Hot Plug

• Supports FIS-based-switching and command-based switching

• Power input: 3 Watt

• OS independent, no driver installation required

Item No. 89207

EAN

Country of origin

4043619892075

Taiwan, Republic of
China

System requirements

• SATA host controller with SATA Port Multiplier support

Package content

• Port Multiplier

• Power cable: CB-00133

Package

• White Box
