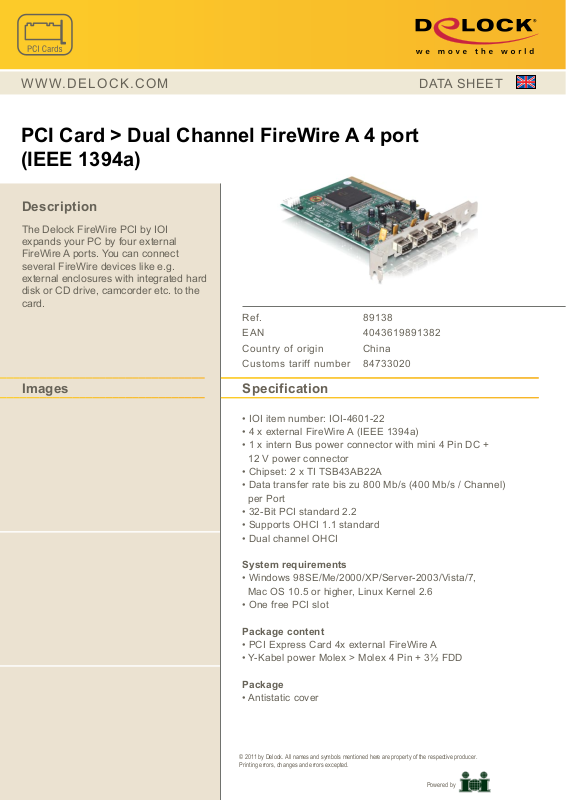

DeLOCK 89138 User Manual

WWW. D E L O C K . C O M

PCI Card > Dual Channel FireWire A 4 port
(IEEE 1394a)

Description

The Delock FireWire PCI by IOI
expands your PC by four external
FireWire A ports. You can connect
several FireWire devices like e.g.
external enclosures with integrated hard
disk or CD drive, camcorder etc. to the
card.

Ref.

EAN

Country of origin

Customs tariff number

89138

4043619891382

China

84733020

DATA SHEET

Images

Specification

• IOI item number: IOI-4601-22

• 4 x external FireWire A (IEEE 1394a)

• 1 x intern Bus power connector with mini 4 Pin DC +
12 V power connector

• Chipset: 2 x TI TSB43AB22A

• Data transfer rate bis zu 800 Mb/s (400 Mb/s / Channel)
per Port

• 32-Bit PCI standard 2.2

• Supports OHCI 1.1 standard

• Dual channel OHCI

System requirements

• Windows 98SE/Me/2000/XP/Server-2003/Vista/7,
Mac OS 10.5 or higher, Linux Kernel 2.6

• One free PCI slot

Package content

• PCI Express Card 4x external FireWire A

• Y-Kabel power Molex > Molex 4 Pin + 3½ FDD

Package

• Antistatic cover

© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
