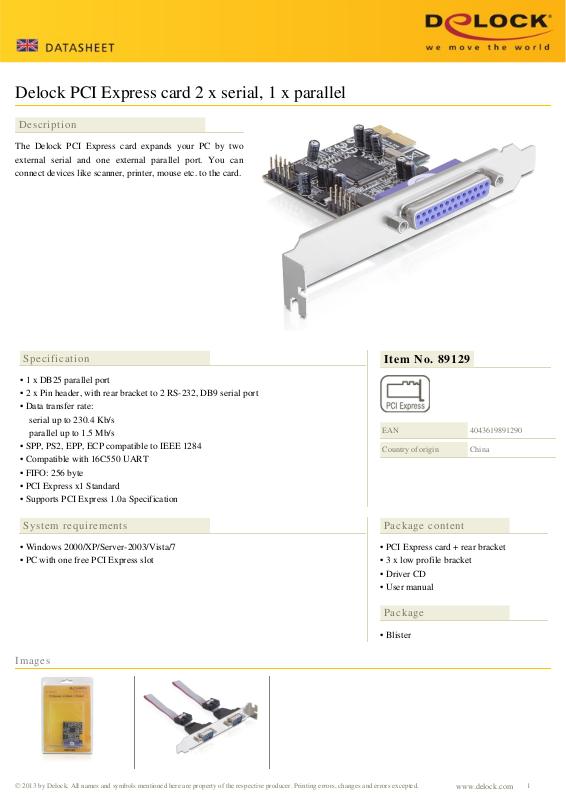

DeLOCK 89129 User Manual

Delock PCI Express card 2 x serial, 1 x parallel

Description

The Delock PCI Express card expands your PC by two
external serial and one external parallel port. You can
connect devices like scanner, printer, mouse etc. to the card.

Specification

• 1 x DB25 parallel port

• 2 x Pin header, with rear bracket to 2 RS-232, DB9 serial port

• Data transfer rate:
serial up to 230.4 Kb/s
parallel up to 1.5 Mb/s

• SPP, PS2, EPP, ECP compatible to IEEE 1284

• Compatible with 16C550 UART

• FIFO: 256 byte

• PCI Express x1 Standard

• Supports PCI Express 1.0a Specification

Item No. 89129

EAN

Country of origin

4043619891290

China

System requirements

• Windows 2000/XP/Server-2003/Vista/7

• PC with one free PCI Express slot

Package content

• PCI Express card + rear bracket

• 3 x low profile bracket

• Driver CD

• User manual

Package

• Blister

Images

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.

Powered by TCPDF (www.tcpdf.org)

www.delock.com

1
