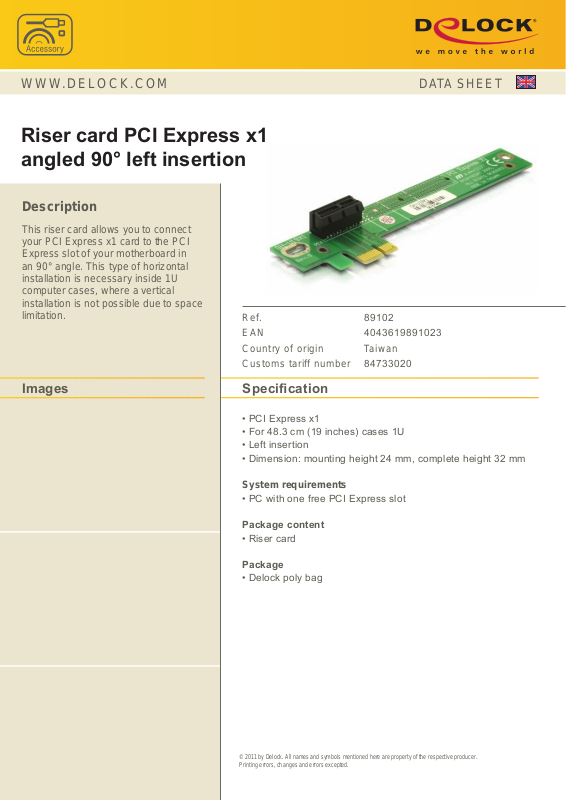

DeLOCK 89102 User Manual
WWW.DELOCK.COM
Riser card PCI Express x1
angled 90° left insertion
Description
This riser card allows you to connect
your PCI Express x1 card to the PCI
Express slot of your motherboard in
an 90° angle. This type of horizontal
installation is necessary inside 1U
computer cases, where a vertical
installation is not possible due to space
limitation.
Ref.
EAN
Country of origin
Customs tariff number
DATA SHEET
89102
4043619891023
Taiwan
84733020
Images
Specication
• PCI Express x1
• For 48.3 cm (19 inches) cases 1U
• Left insertion
• Dimension: mounting height 24 mm, complete height 32 mm
System requirements
• PC with one free PCI Express slot
Package content
• Riser card
Package
• Delock poly bag
