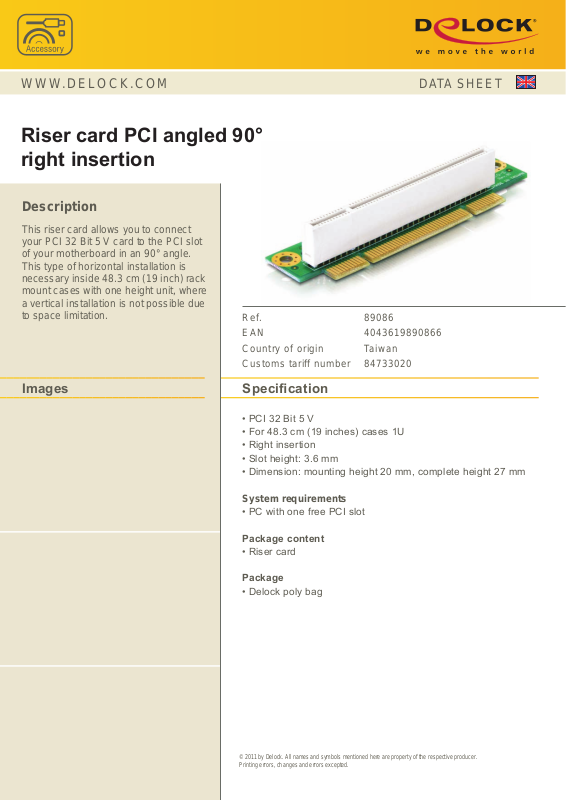

DeLOCK 89086 User Manual
WWW.DELOCK.COM
Riser card PCI angled 90°
right insertion
Description
This riser card allows you to connect
your PCI 32 Bit 5 V card to the PCI slot
of your motherboard in an 90° angle.
This type of horizontal installation is
necessary inside 48.3 cm (19 inch) rack
mount cases with one height unit, where
a vertical installation is not possible due
to space limitation.
Ref.
EAN
Country of origin
Customs tariff number
DATA SHEET
89086
4043619890866
Taiwan
84733020
Images
Specication
• PCI 32 Bit 5 V
• For 48.3 cm (19 inches) cases 1U
• Right insertion
• Slot height: 3.6 mm
• Dimension: mounting height 20 mm, complete height 27 mm
System requirements
• PC with one free PCI slot
Package content
• Riser card
Package
• Delock poly bag
© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
