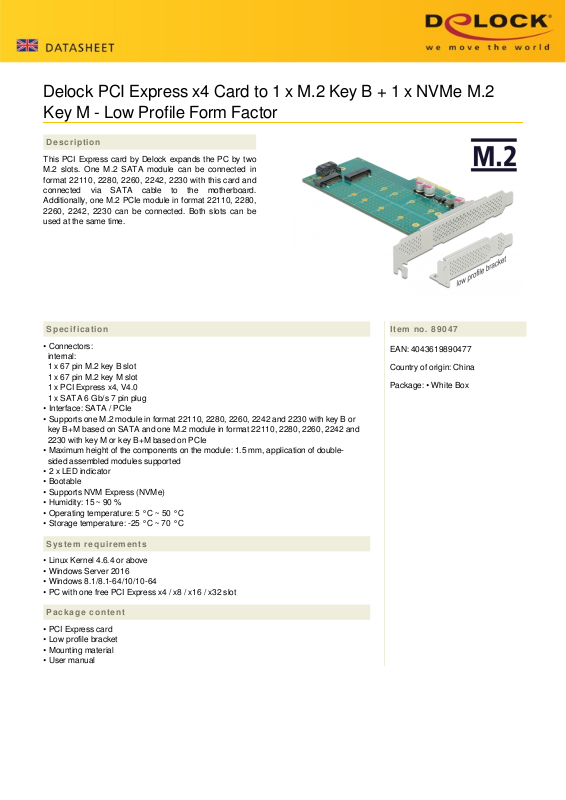

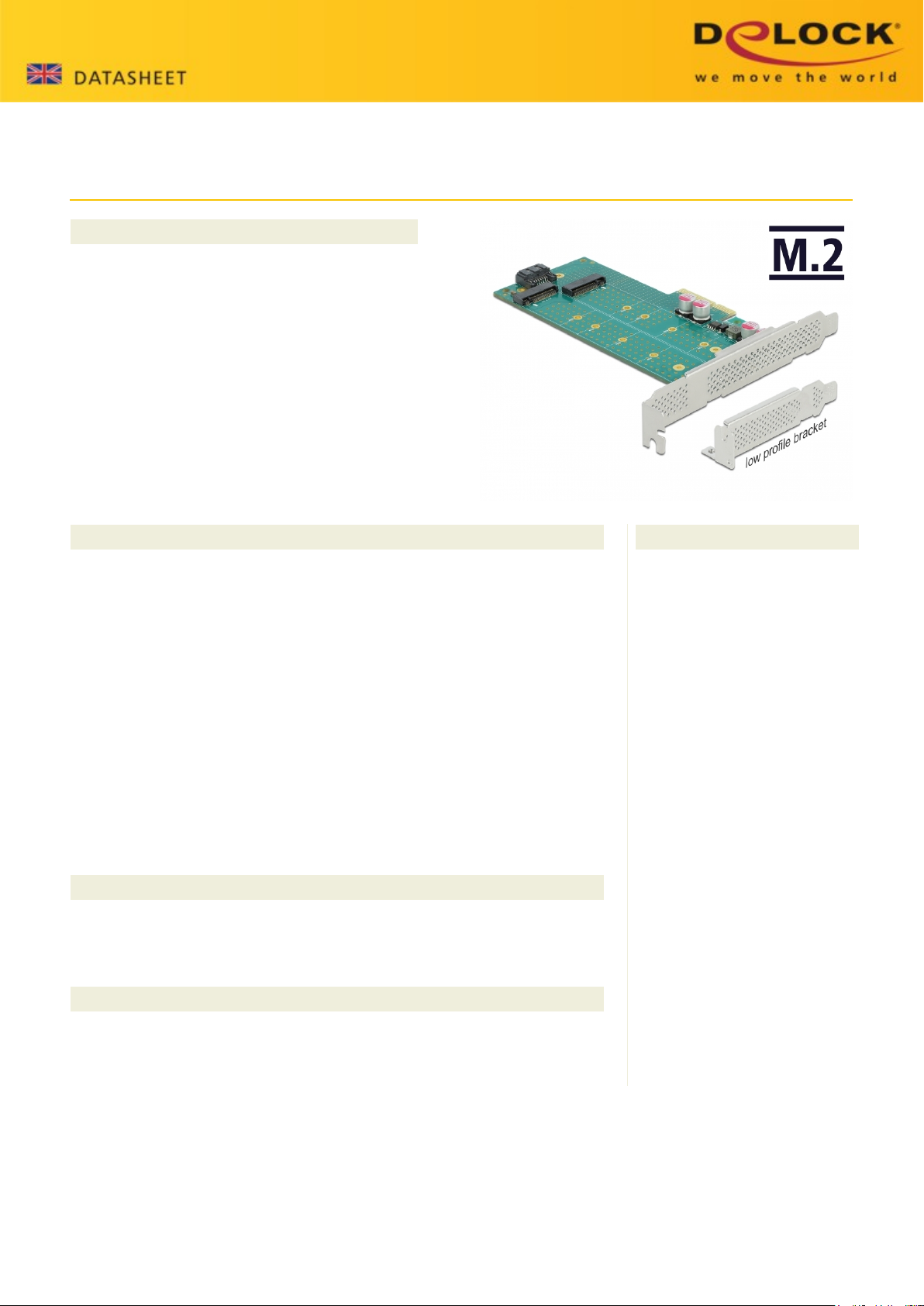

Delock PCI Express x4 Card to 1 x M.2 Key B + 1 x NVMe M.2
Key M - Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC by two
M.2 slots. One M.2 SATA module can be connected in
format 22110, 2280, 2260, 2242, 2230 with this card and
connected via SATA cable to the motherboard.
Additionally, one M.2 PCIe module in format 22110, 2280,
2260, 2242, 2230 can be connected. Both slots can be
used at the same time.
Specification
• Connectors:
internal:
1 x 67 pin M.2 key B slot
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V4.0
1 x SATA 6 Gb/s 7 pin plug
• Interface: SATA / PCIe
• Supports one M.2 module in format 22110, 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA and one M.2 module in format 22110, 2280, 2260, 2242 and
2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• 2 x LED indicator
• Bootable
• Supports NVM Express (NVMe)
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
Item no. 89047
EAN: 4043619890477
Country of origin: China
Package: • White Box
System requirements
• Linux Kernel 4.6.4 or above
• Windows Server 2016
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• Mounting material
• User manual
Page 2

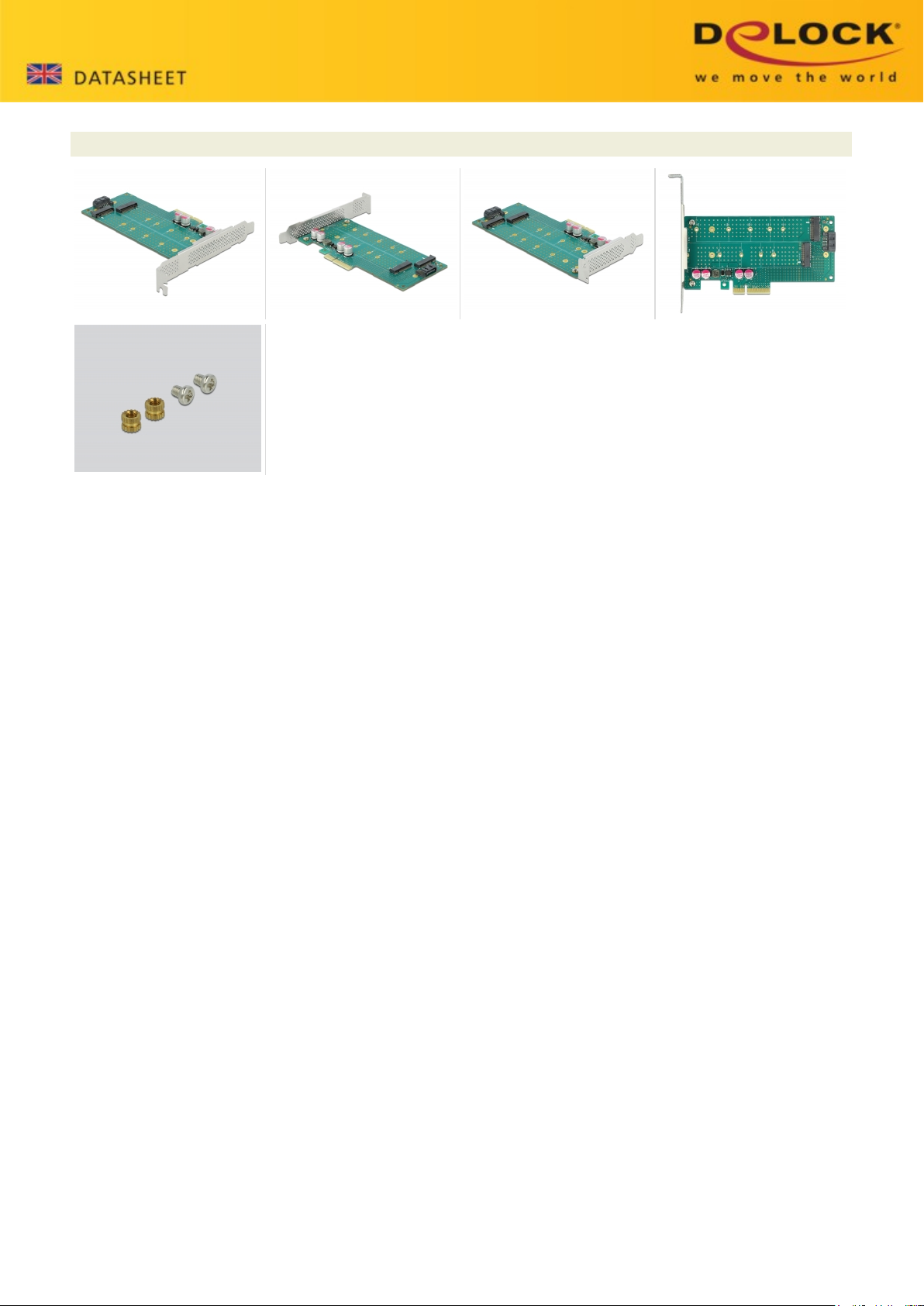

Images
Page 3
General
Function: NVM Express (NVMe)
bootable
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Windows Server 2016
Linux Kernel 4.6.4 or above
LED indicator: 2 x
Slot: PCIe
SATA
Supported module: M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key B or key B+M based
on SATA
M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based
on PCIe
Maximum height of the components on
the module:
Interface
Internal: 1 x 67 pin M.2 key B slot
Physical characteristics
Slot bracket: low profile
1.5 mm application of double-sided assembled modules supported
1 x 67 pin M.2 key M slot
1 x SATA 6 Gb/s 7 pin plug
1 x PCI Express x4, V4.0
standard
