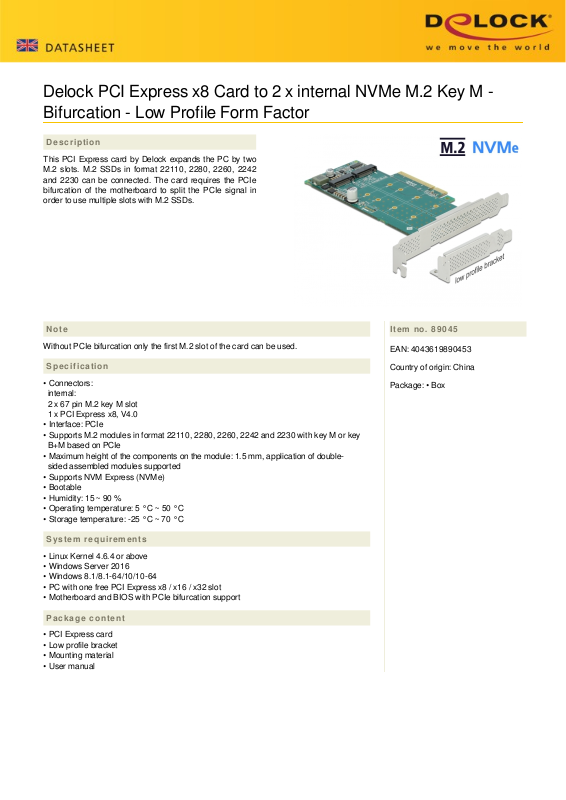

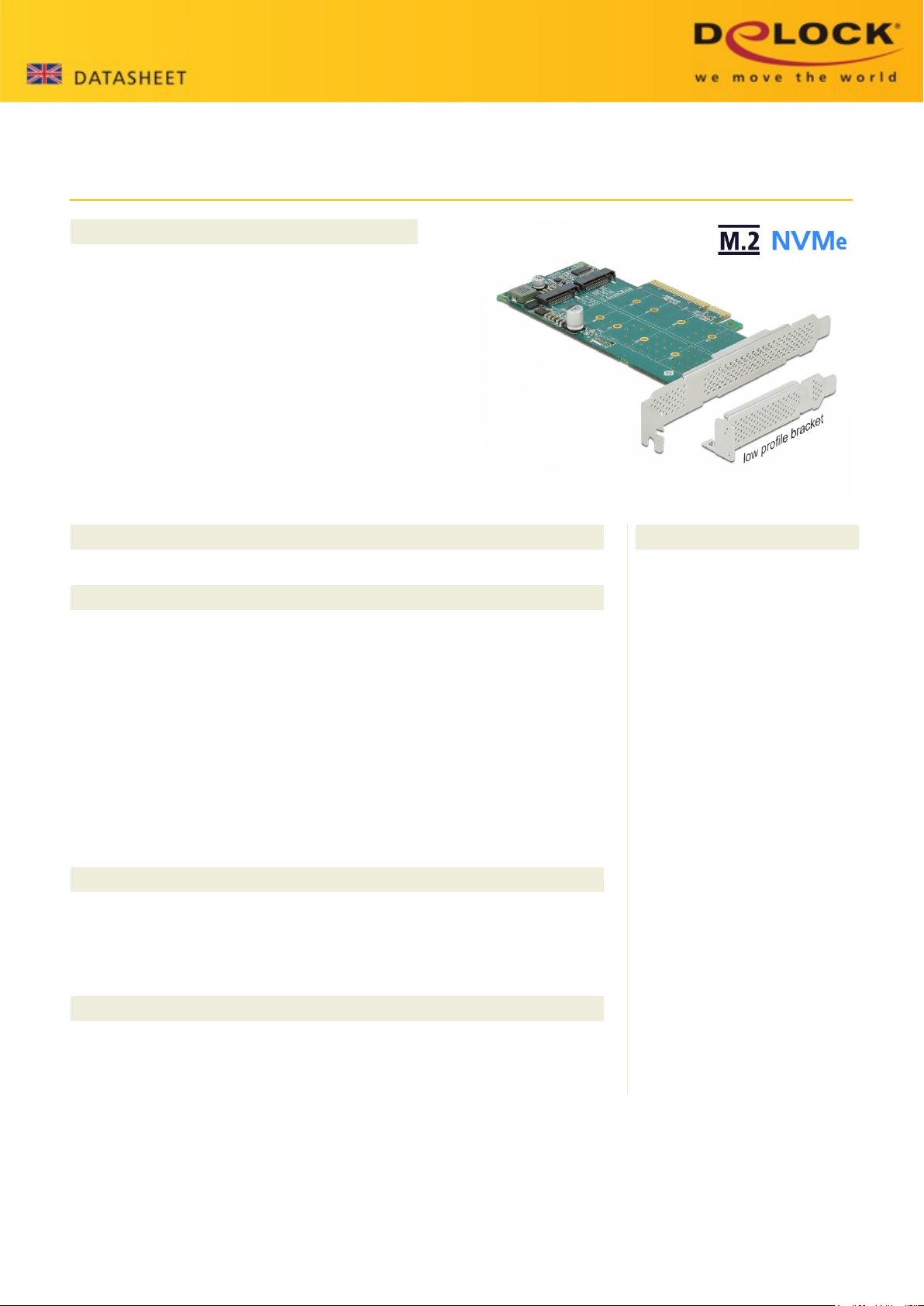

Delock PCI Express x8 Card to 2 x internal NVMe M.2 Key M Bifurcation - Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC by two
M.2 slots. M.2 SSDs in format 22110, 2280, 2260, 2242
and 2230 can be connected. The card requires the PCIe
bifurcation of the motherboard to split the PCIe signal in
order to use multiple slots with M.2 SSDs.
Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.
Specification
• Connectors:
internal:
2 x 67 pin M.2 key M slot
1 x PCI Express x8, V4.0
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key
B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
Item no. 89045
EAN: 4043619890453
Country of origin: China
Package: • Box
System requirements
• Linux Kernel 4.6.4 or above
• Windows Server 2016
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Package content
• PCI Express card
• Low profile bracket
• Mounting material
• User manual
Page 2

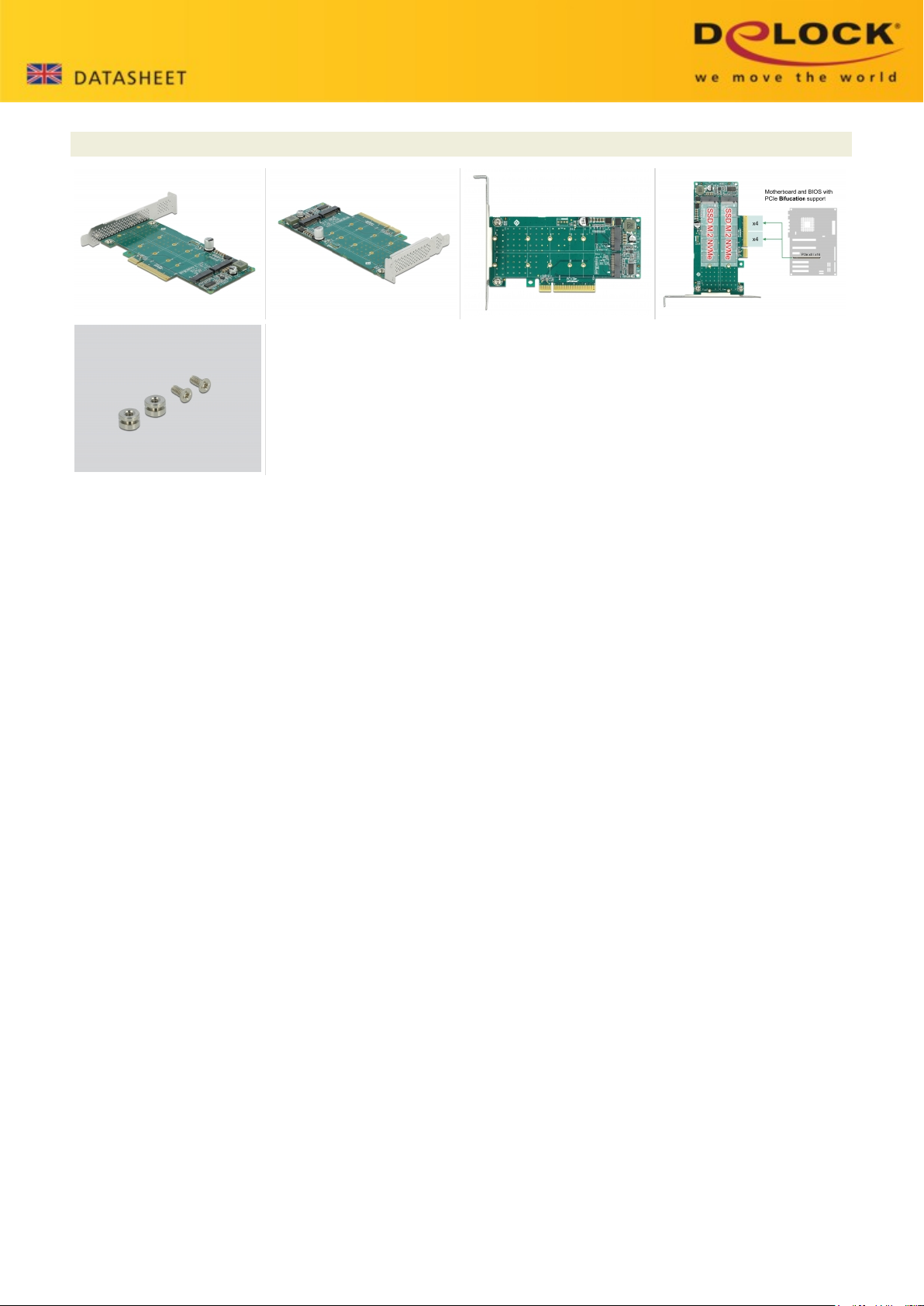

Images
Page 3
General
Form factor: Low Profile
Function: Bootable, ex UEFI 2.3.1
NVM Express (NVMe)
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Windows Server 2016
Linux Kernel 4.6.4 or above
Supported module: M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based
on PCIe
Maximum height of the components on
the module:
Interface
Internal: 2 x 67 pin M.2 key M slot
1.5 mm application of double-sided assembled modules supported
1 x PCI Express x4, V4.0
