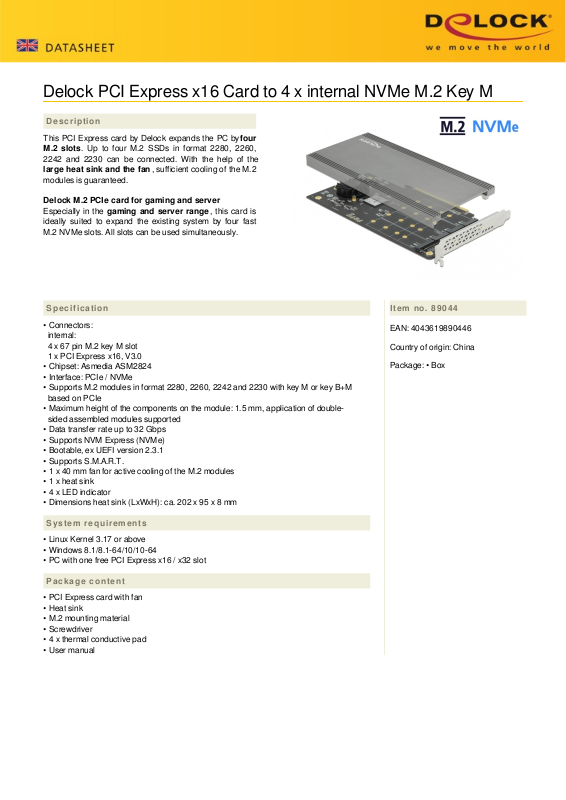

Delock PCI Express x16 Card to 4 x internal NVMe M.2 Key M
Description
This PCI Express card by Delock expands the PC byfour
M.2 slots. Up to four M.2 SSDs in format 2280, 2260,
2242 and 2230 can be connected. With the help of the
large heat sink and the fan , sufficient cooling of the M.2
modules is guaranteed.
Delock M.2 PCIe card for gaming and server
Especially in the gaming and server range, this card is
ideally suited to expand the existing system by four fast
M.2 NVMe slots. All slots can be used simultaneously.
Specification
• Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Chipset: Asmedia ASM2824
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• 1 x 40 mm fan for active cooling of the M.2 modules
• 1 x heat sink
• 4 x LED indicator
• Dimensions heat sink (LxWxH): ca. 202 x 95 x 8 mm
Item no. 89044
EAN: 4043619890446
Country of origin: China
Package: • Box
System requirements
• Linux Kernel 3.17 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
Package content
• PCI Express card with fan
• Heat sink
• M.2 mounting material
• Screwdriver
• 4 x thermal conductive pad
• User manual
Page 2

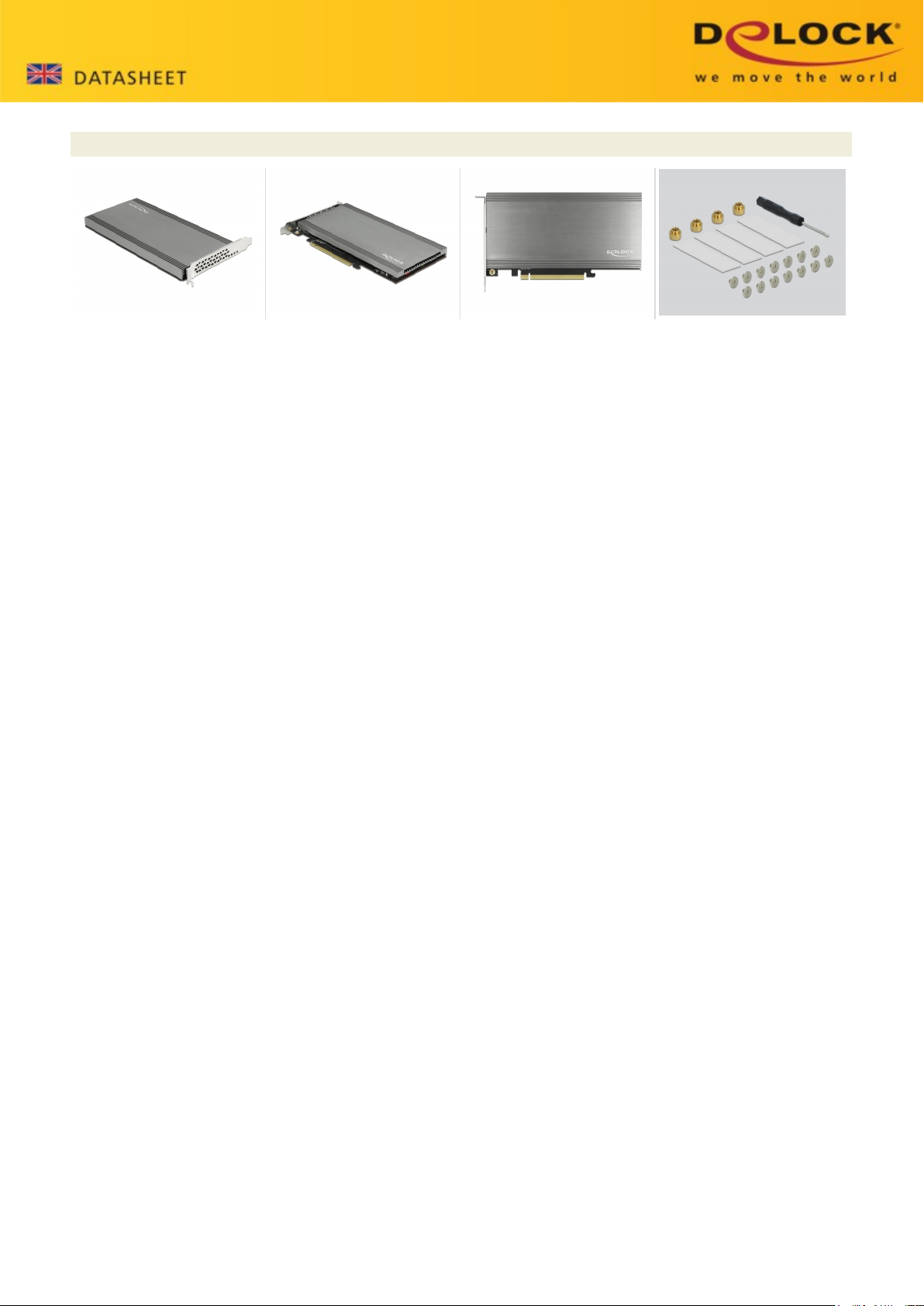

Images
Page 3
General
Function: NVM Express (NVMe)
bootable
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.17 or above
Slot: PCIe
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
Maximum height of the components on
the module:
Interface
Internal: 4 x 67 pin M.2 key M slot
Technical characteristics
Chipset: Asmedia ASM2824
Physical characteristics
Slot bracket: standard
1.5 mm application of double-sided assembled modules supported
1 x PCI Express x16, V3.0
