Description

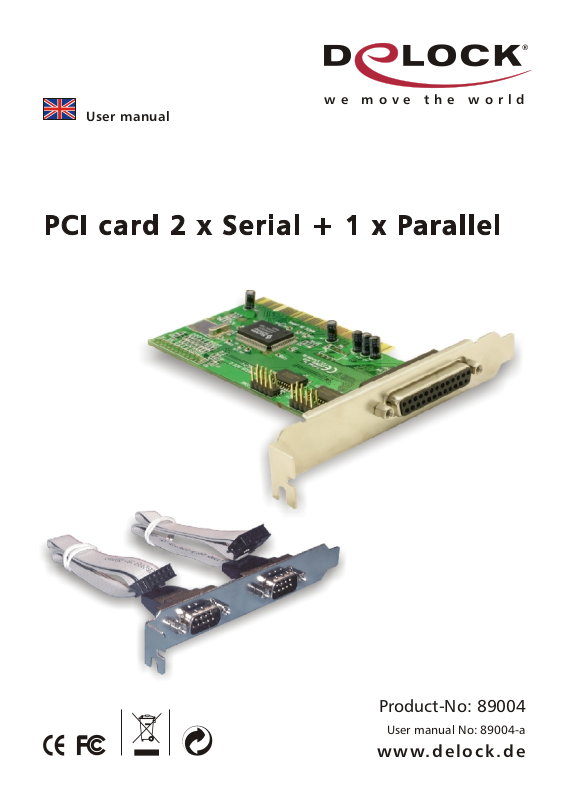

The DeLock PCI Card expands your PC by two external serial ports, also
one external parallel port. You can connect devices like scanner, printer,
mouse etc. to the card.

Specification
Serial Interface

•

Compatible with 16C550 UART

•

FIFO: 16 byte

•

Data transfer rate up to 1 Mbps

•

2 x Pin header, with rear bracket with two DB9

Parallel Interface

• SPP, PS2, EPP, ECP compatible IEEE 1284

• FIFO: 16 byte

• Data transfer rate up to 1.5 Mbps

• 1 x DB25 parallel port

• Plug & Play

• Automatically selects IRQ and I/O

• Supports PCI IQR sharing

• 32-Bit PCI standard 2.1

System requirements

• PC with one free PCI Slot and one rear slot

• Windows 98SE/ME/2000/NT4.0/XP, Linux, DOS

Package content*

•PCI card + rear bracket

• Driver CD

• User manual

*Make sure that product package contains all items before operation. If any item is missing
or damaged, then please contact your dealer immediately.
