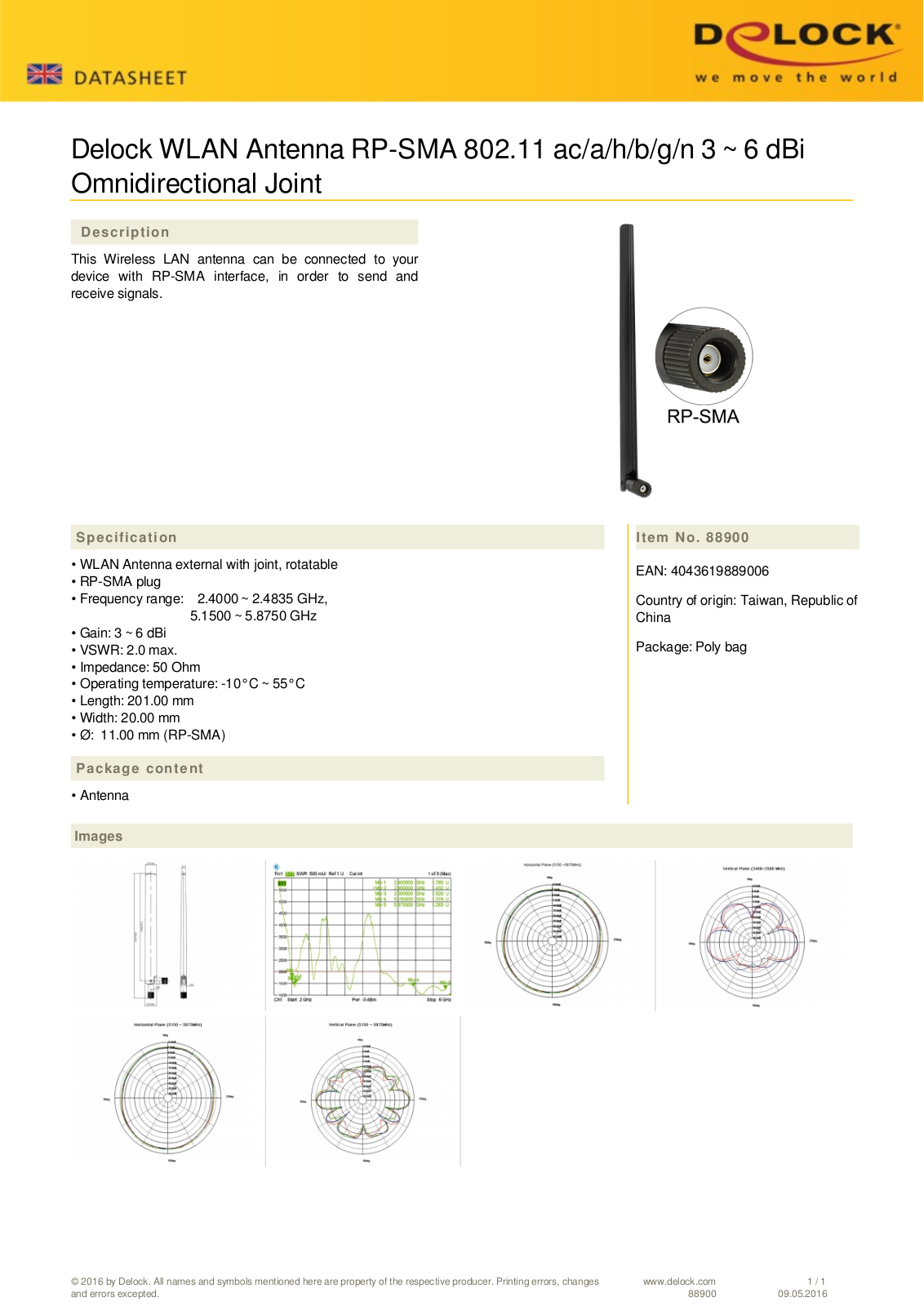

Page 1
Delock WLAN Antenna RP-SMA 802.11 ac/a/h/b/g/n 3 ~ 6 dBi
Omnidirectional Joint
Description
This Wireless LAN antenna can be connected to your
device with RP-SMA interface, in order to send and
receive signals.
Specification
• WLAN Antenna external with joint, rotatable
• RP-SMA plug
• Frequency range: 2.4000 ~ 2.4835 GHz,
5.1500 ~ 5.8750 GHz
• Gain: 3 ~ 6 dBi
• VSWR: 2.0 max.
• Impedance: 50 Ohm
• Operating temperature: -10°C ~ 55°C
• Length: 201.00 mm
• Width: 20.00 mm
• Ø: 11.00 mm (RP-SMA)
Item No. 88900
EAN: 4043619889006
Country of origin: Taiwan, Republic of
China
Package: Poly bag
Package content
• Antenna
Images
