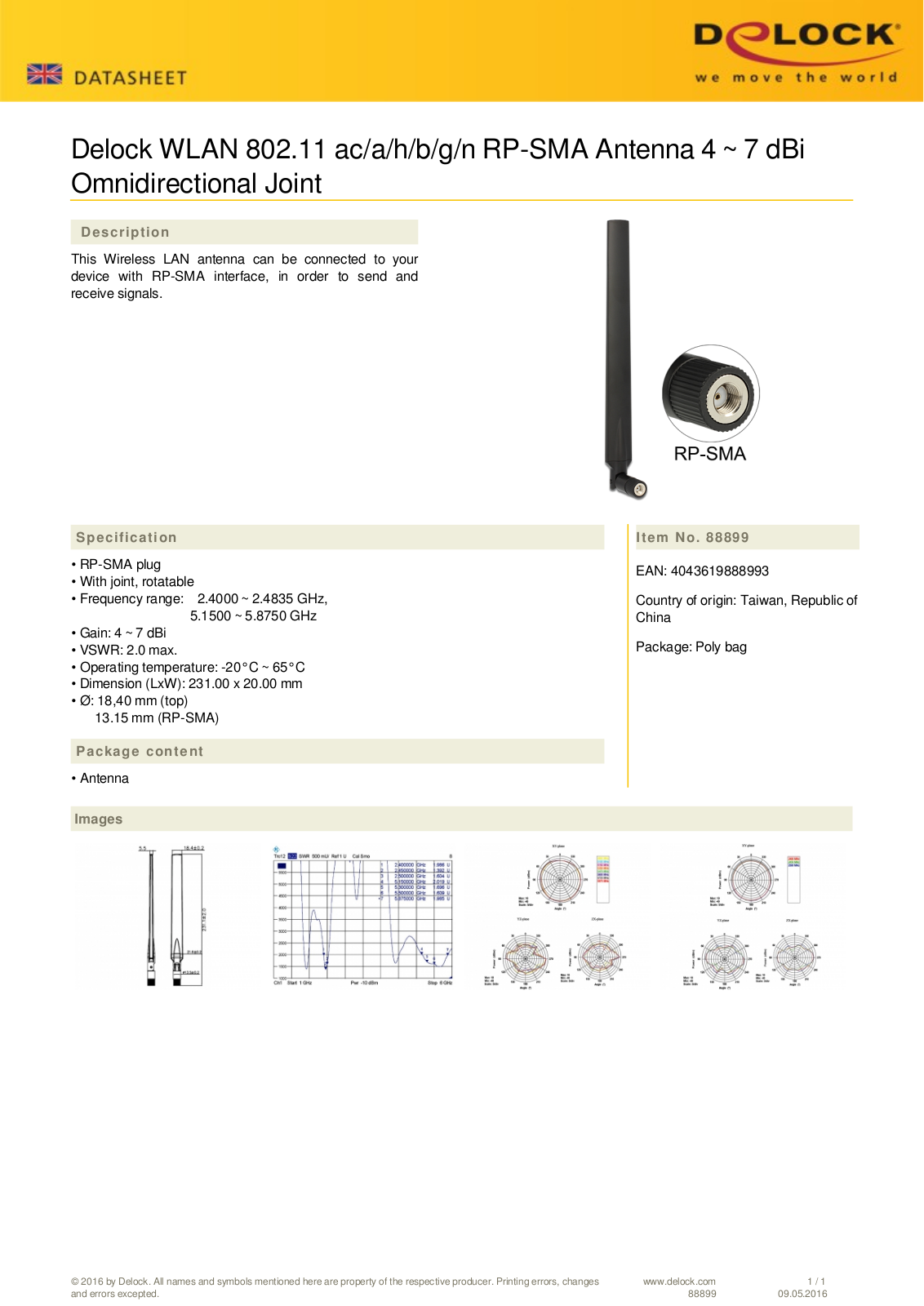

Delock WLAN 802.11 ac/a/h/b/g/n RP-SMA Antenna 4 ~ 7 dBi
Omnidirectional Joint
Description
This Wireless LAN antenna can be connected to your
device with RP-SMA interface, in order to send and
receive signals.
Specification
• RP-SMA plug
• With joint, rotatable
• Frequency range: 2.4000 ~ 2.4835 GHz,
5.1500 ~ 5.8750 GHz
• Gain: 4 ~ 7 dBi
• VSWR: 2.0 max.
• Operating temperature: -20°C ~ 65°C
• Dimension (LxW): 231.00 x 20.00 mm
• Ø: 18,40 mm (top)
13.15 mm (RP-SMA)
Item No. 88899
EAN: 4043619888993
Country of origin: Taiwan, Republic of
China
Package: Poly bag
Package content
• Antenna
Images
Powered by TCPDF (www.tcpdf.org)
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
88899
1 / 1
09.05.2016
