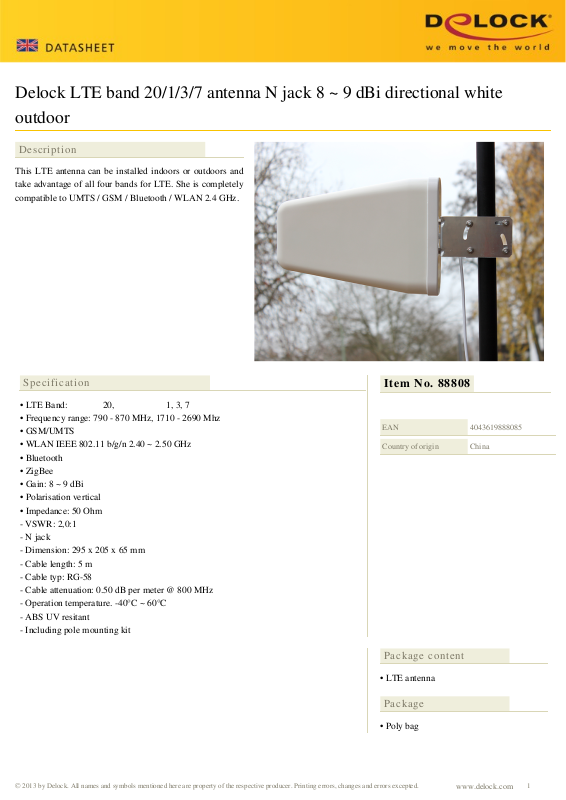

Delock LTE band 20/1/3/7 antenna N jack 8 ~ 9 dBi directional white
outdoor

Description

This LTE antenna can be installed indoors or outdoors and
take advantage of all four bands for LTE. She is completely
compatible to UMTS / GSM / Bluetooth / WLAN 2.4 GHz.

Specification

• LTE Band: 20, 1, 3, 7

• Frequency range: 790 - 870 MHz, 1710 - 2690 Mhz

• GSM/UMTS

• WLAN IEEE 802.11 b/g/n 2.40 ~ 2.50 GHz

• Bluetooth

• ZigBee

• Gain: 8 ~ 9 dBi

• Polarisation vertical

• Impedance: 50 Ohm

- VSWR: 2,0:1

- N jack

- Dimension: 295 x 205 x 65 mm

- Cable length: 5 m

- Cable typ: RG-58

- Cable attenuation: 0.50 dB per meter @ 800 MHz

- Operation temperature. -40°C ~ 60°C

- ABS UV resitant

- Including pole mounting kit

Item No. 88808

EAN

Country of origin

4043619888085

China

Package content

• LTE antenna

Package

• Poly bag
