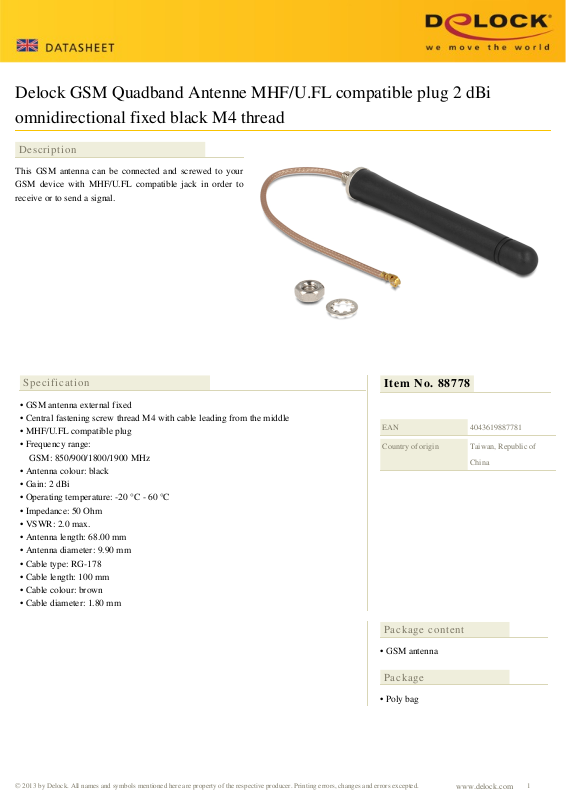

Delock GSM Quadband Antenne MHF/U.FL compatible plug 2 dBi
omnidirectional fixed black M4 thread

Description

This GSM antenna can be connected and screwed to your
GSM device with MHF/U.FL compatible jack in order to
receive or to send a signal.

Specification

• GSM antenna external fixed

• Central fastening screw thread M4 with cable leading from the middle

• MHF/U.FL compatible plug

• Frequency range:
GSM: 850/900/1800/1900 MHz

• Antenna colour: black

• Gain: 2 dBi

• Operating temperature: -20 °C - 60 °C

• Impedance: 50 Ohm

• VSWR: 2.0 max.

• Antenna length: 68.00 mm

• Antenna diameter: 9.90 mm

• Cable type: RG-178

• Cable length: 100 mm

• Cable colour: brown

• Cable diameter: 1.80 mm

Item No. 88778

EAN

Country of origin

4043619887781

Taiwan, Republic of
China

Package content

• GSM antenna

Package

• Poly bag
