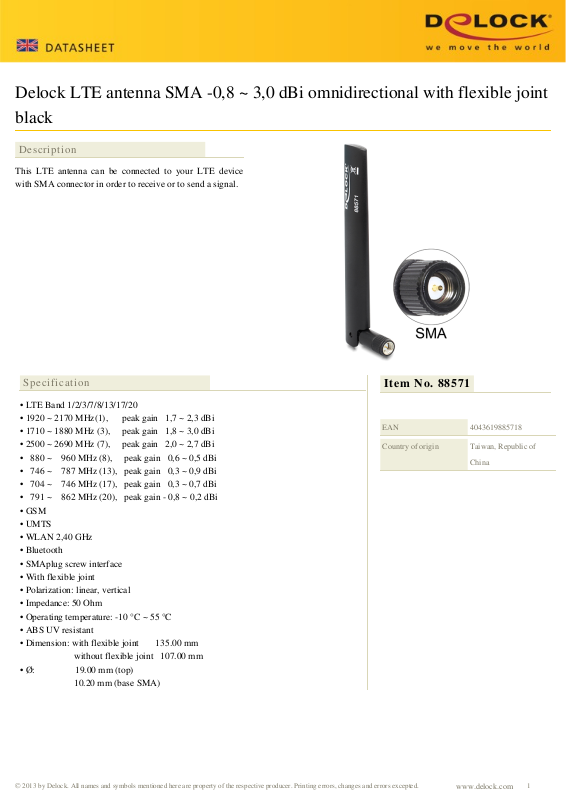

DeLOCK 88571 User Manual

Delock LTE antenna SMA -0,8 ~ 3,0 dBi omnidirectional with flexible joint black

Description

This LTE antenna can be connected to your LTE device with SMA connector in order to receive or to send a signal.

Specification

• LTE Band 1/2/3/7/8/13/17/20

• 1920 ~ 2170 MHz(1), peak gain 1,7 ~ 2,3 dBi

• 1710 ~ 1880 MHz (3), peak gain 1,8 ~ 3,0 dBi

• 2500 ~ 2690 MHz (7), peak gain 2,0 ~ 2,7 dBi

• 880 ~ 960 MHz (8), peak gain 0,6 ~ 0,5 dBi

• 746 ~ 787 MHz (13), peak gain 0,3 ~ 0,9 dBi

• 704 ~ 746 MHz (17), peak gain 0,3 ~ 0,7 dBi

• 791 ~ 862 MHz (20), peak gain - 0,8 ~ 0,2 dBi

• GSM

• UMTS

• WLAN 2,40 GHz

• Bluetooth

• SMAplug screw interface

• With flexible joint

• Polarization: linear, vertical

• Impedance: 50 Ohm

• Operating temperature: -10 °C ~ 55 °C

• ABS UV resistant

• Dimension: with flexible joint 135.00 mm without flexible joint 107.00 mm

• Ø: 19.00 mm (top)

10.20 mm (base SMA)

Item No. 88571

EAN

Country of origin

4043619885718

Taiwan, Republic of China

www.delock.com

Package content

• Antenna

Package

• Poly bag
