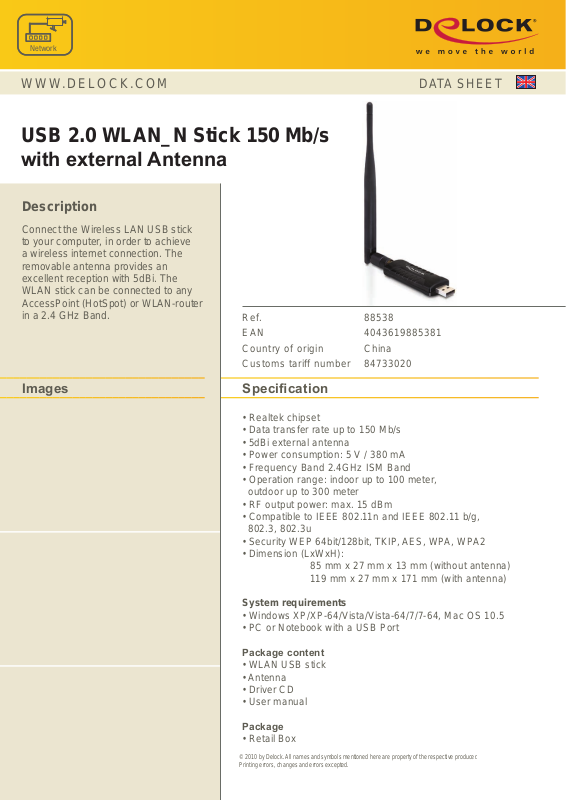

DeLOCK 88538 User Manual

Network
WWW.DELOCK.COM
USB 2.0 WLAN_N Stick 150 Mb/s
with external Antenna
Description
Connect the Wireless LAN USB stick to your computer, in order to achieve a wireless internet connection. The removable antenna provides an excellent reception with 5dBi. The WLAN stick can be connected to any AccessPoint (HotSpot) or WLAN-router in a 2.4 GHz Band.
Ref. EAN Country of origin Customs tariff number
DATA SHEET
88538 4043619885381 China 84733020
Images
Specication
• Realtek chipset
• Data transfer rate up to 150 Mb/s
• 5dBi external antenna
• Power consumption: 5 V / 380 mA
• Frequency Band 2.4GHz ISM Band
• Operation range: indoor up to 100 meter, outdoor up to 300 meter
• RF output power: max. 15 dBm
• Compatible to IEEE 802.11n and IEEE 802.11 b/g,
802.3, 802.3u
• Security WEP 64bit/128bit, TKIP, AES, WPA, WPA2
• Dimension (LxWxH): 85 mm x 27 mm x 13 mm (without antenna) 119 mm x 27 mm x 171 mm (with antenna)
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64, Mac OS 10.5
• PC or Notebook with a USB Port
Package content
• WLAN USB stick
• Antenna
• Driver CD
• User manual
Package
• Retail Box
© 2010 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
