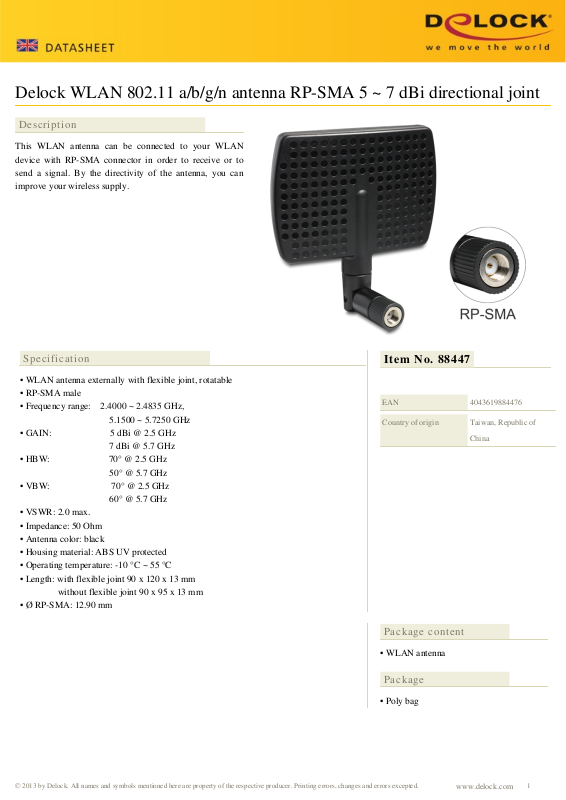

Delock WLAN 802.11 a/b/g/n antenna RP-SMA 5 ~ 7 dBi directional joint
Description
This WLAN antenna can be connected to your WLAN
device with RP-SMA connector in order to receive or to
send a signal. By the directivity of the antenna, you can
improve your wireless supply.
Specification
• WLAN antenna externally with flexible joint, rotatable
• RP-SMA male
• Frequency range: 2.4000 ~ 2.4835 GHz,
5.1500 ~ 5.7250 GHz
• GAIN: 5 dBi @ 2.5 GHz
7 dBi @ 5.7 GHz
• HBW: 70° @ 2.5 GHz
50° @ 5.7 GHz
• VBW: 70° @ 2.5 GHz
60° @ 5.7 GHz
• VSWR: 2.0 max.
• Impedance: 50 Ohm
• Antenna color: black
• Housing material: ABS UV protected
• Operating temperature: -10 °C ~ 55 °C
• Length: with flexible joint 90 x 120 x 13 mm
without flexible joint 90 x 95 x 13 mm
• Ø RP-SMA: 12.90 mm
Item No. 88447
EAN
Country of origin
4043619884476
Taiwan, Republic of
China
Package content
• WLAN antenna
Package
• Poly bag
