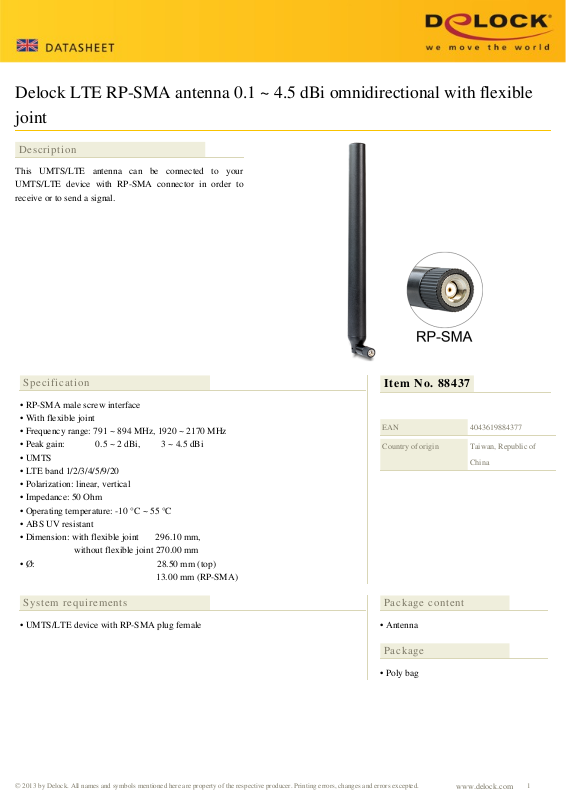

DeLOCK 88437 User Manual

Delock LTE RP-SMA antenna 0.1 ~ 4.5 dBi omnidirectional with flexible
joint

Description

This UMTS/LTE antenna can be connected to your
UMTS/LTE device with RP-SMA connector in order to
receive or to send a signal.

Specification

• RP-SMA male screw interface

• With flexible joint

• Frequency range: 791 ~ 894 MHz, 1920 ~ 2170 MHz

• Peak gain: 0.5 ~ 2 dBi, 3 ~ 4.5 dBi

• UMTS

• LTE band 1/2/3/4/5/9/20

• Polarization: linear, vertical

• Impedance: 50 Ohm

• Operating temperature: -10 °C ~ 55 °C

• ABS UV resistant

• Dimension: with flexible joint 296.10 mm,
without flexible joint 270.00 mm

• Ø: 28.50 mm (top)

13.00 mm (RP-SMA)

Item No. 88437

EAN

Country of origin

4043619884377

Taiwan, Republic of
China

System requirements

• UMTS/LTE device with RP-SMA plug female

Package content

• Antenna

Package

• Poly bag
