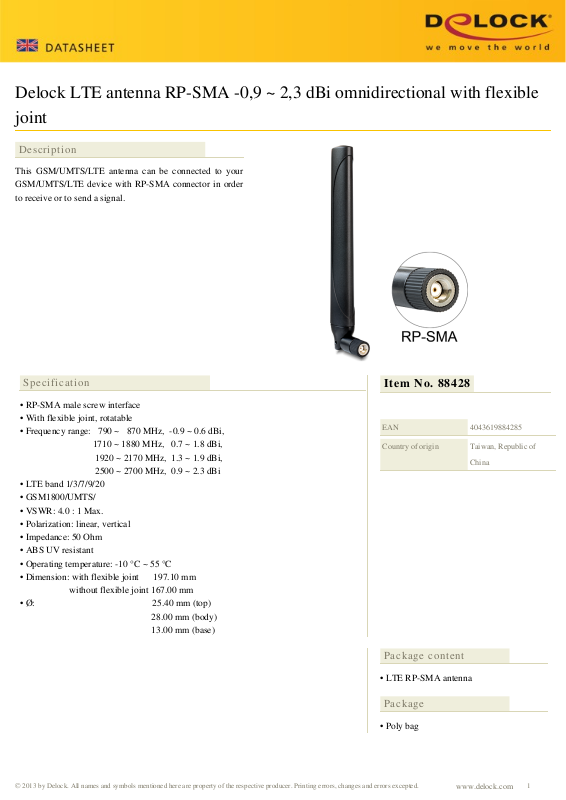

DeLOCK 88428 User Manual

Delock LTE antenna RP-SMA -0,9 ~ 2,3 dBi omnidirectional with flexible
joint

Description

This GSM/UMTS/LTE antenna can be connected to your
GSM/UMTS/LTE device with RP-SMA connector in order
to receive or to send a signal.

Specification

• RP-SMA male screw interface

• With flexible joint, rotatable

• Frequency range: 790 ~ 870 MHz, -0.9 ~ 0.6 dBi,
1710 ~ 1880 MHz, 0.7 ~ 1.8 dBi,
1920 ~ 2170 MHz, 1.3 ~ 1.9 dBi,
2500 ~ 2700 MHz, 0.9 ~ 2.3 dBi

• LTE band 1/3/7/9/20

• GSM1800/UMTS/

• VSWR: 4.0 : 1 Max.

• Polarization: linear, vertical

• Impedance: 50 Ohm

• ABS UV resistant

• Operating temperature: -10 °C ~ 55 °C

• Dimension: with flexible joint 197.10 mm
without flexible joint 167.00 mm

• Ø: 25.40 mm (top)

28.00 mm (body)

13.00 mm (base)

Item No. 88428

EAN

Country of origin

4043619884285

Taiwan, Republic of
China

Package content

• LTE RP-SMA antenna

Package

• Poly bag
