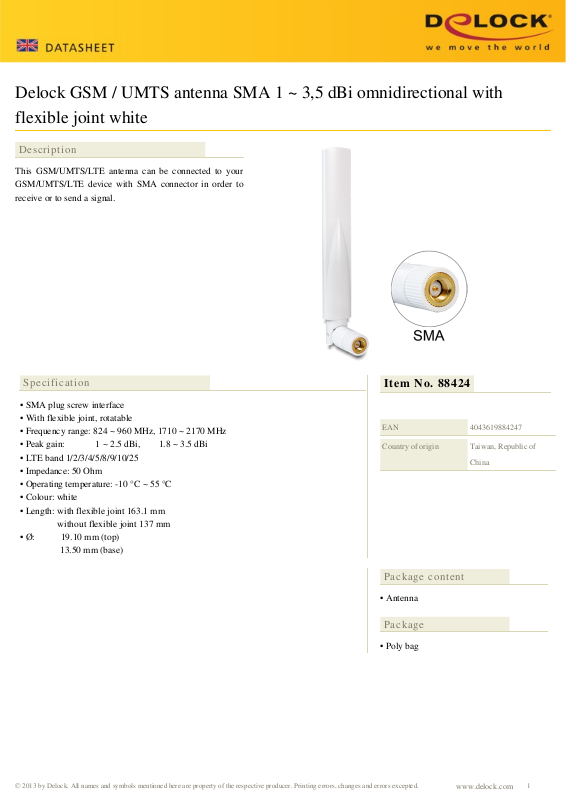

DeLOCK 88424 User Manual

Delock GSM / UMTS antenna SMA 1 ~ 3,5 dBi omnidirectional with
flexible joint white

Description

This GSM/UMTS/LTE antenna can be connected to your
GSM/UMTS/LTE device with SMA connector in order to
receive or to send a signal.

Specification

• SMA plug screw interface

• With flexible joint, rotatable

• Frequency range: 824 ~ 960 MHz, 1710 ~ 2170 MHz

• Peak gain: 1 ~ 2.5 dBi, 1.8 ~ 3.5 dBi

• LTE band 1/2/3/4/5/8/9/10/25

• Impedance: 50 Ohm

• Operating temperature: -10 °C ~ 55 °C

• Colour: white

• Length: with flexible joint 163.1 mm
without flexible joint 137 mm

• Ø: 19.10 mm (top)

13.50 mm (base)

Item No. 88424

EAN

Country of origin

4043619884247

Taiwan, Republic of
China

Package content

• Antenna

Package

• Poly bag
