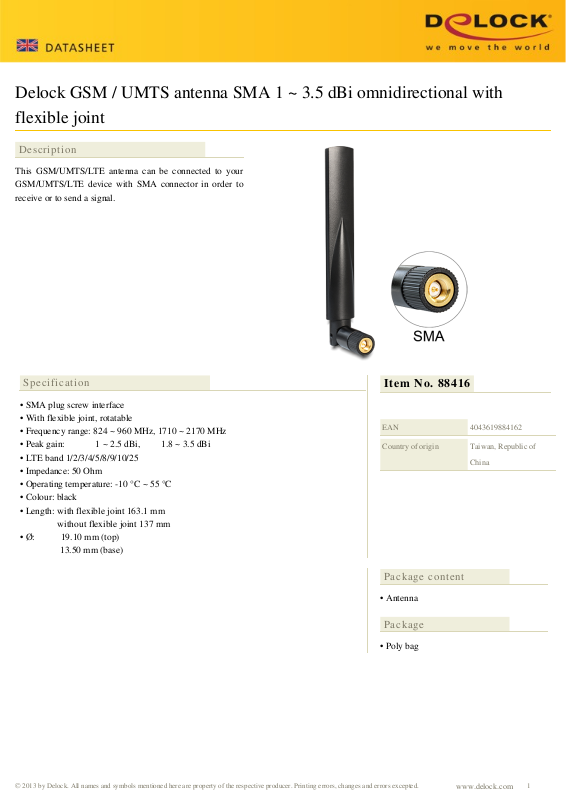

Delock GSM / UMTS antenna SMA 1 ~ 3.5 dBi omnidirectional with
flexible joint
Description
This GSM/UMTS/LTE antenna can be connected to your
GSM/UMTS/LTE device with SMA connector in order to
receive or to send a signal.
Specification
• SMA plug screw interface
• With flexible joint, rotatable
• Frequency range: 824 ~ 960 MHz, 1710 ~ 2170 MHz
• Peak gain: 1 ~ 2.5 dBi, 1.8 ~ 3.5 dBi
• LTE band 1/2/3/4/5/8/9/10/25
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Length: with flexible joint 163.1 mm
without flexible joint 137 mm
• Ø: 19.10 mm (top)
13.50 mm (base)
Item No. 88416
EAN
Country of origin
4043619884162
Taiwan, Republic of
China
Package content
• Antenna
Package
• Poly bag
