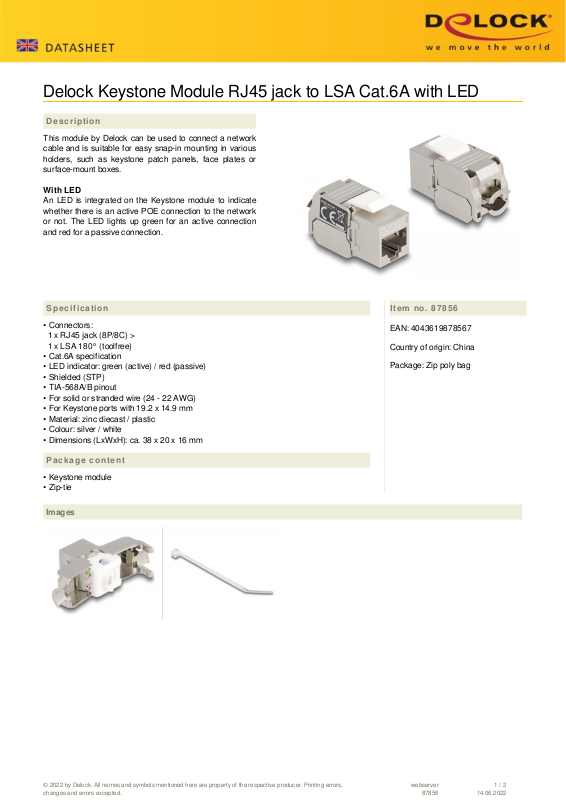

Delock Keystone Module RJ45 jack to LSA Cat.6A with LED
Description
This module by Delock can be used to connect a network
cable and is suitable for easy snap-in mounting in various
holders, such as keystone patch panels, face plates or
surface-mount boxes.
With LED
An LED is integrated on the Keystone module to indicate
whether there is an active POE connection to the network
or not. The LED lights up green for an active connection
and red for a passive connection.
Specification
• Connectors:
1 x RJ45 jack (8P/8C) >
1 x LSA 180° (toolfree)
• Cat.6A specification
• LED indicator: green (active) / red (passive)
• Shielded (STP)
• TIA-568A/B pinout
• For solid or stranded wire (24 - 22 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 38 x 20 x 16 mm
Item no. 87856
EAN: 4043619878567
Country of origin: China
Package: Zip poly bag
Package content
• Keystone module
• Zip-tie
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
webserver
87856
1 / 2
14.06.2022
Page 2
General
Suitable for conductor gauge: 24 - 22 AWG
Specification: Cat. 6A
Interface
Connector 1: 1 x RJ45 jack
Connector 2: 1 x LSA 180° (toolfree)
Physical characteristics
Material: zinc diecast / plastic
Shielding: STP
Length: 38 mm
Width: 20 mm
Height: 16 mm
Colour: silver / white
