Page 1

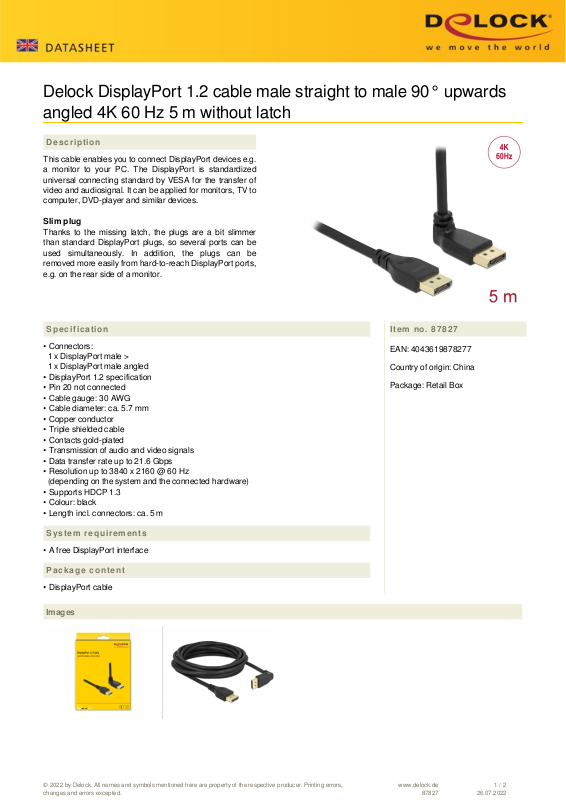

Delock DisplayPort 1.2 cable male straight to male 90° upwards
angled 4K 60 Hz 5 m without latch
Description
This cable enables you to connect DisplayPort devices e.g.
a monitor to your PC. The DisplayPort is standardized
universal connecting standard by VESA for the transfer of
video and audiosignal. It can be applied for monitors, TV to
computer, DVD-player and similar devices.
Slim plug
Thanks to the missing latch, the plugs are a bit slimmer
than standard DisplayPort plugs, so several ports can be
used simultaneously. In addition, the plugs can be
removed more easily from hard-to-reach DisplayPort ports,
e.g. on the rear side of a monitor.
Specification
• Connectors:
1 x DisplayPort male >
1 x DisplayPort male angled
• DisplayPort 1.2 specification
• Pin 20 not connected
• Cable gauge: 30 AWG
• Cable diameter: ca. 5.7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 21.6 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDCP 1.3
• Colour: black
• Length incl. connectors: ca. 5 m
Item no. 87827
EAN: 4043619878277
Country of origin: China
Package: Retail Box
System requirements
• A free DisplayPort interface
Package content
• DisplayPort cable
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
87827
1 / 2
26.07.2022
Page 2
General
Specification: DisplayPort 1.2
HDCP 1.3
Interface
Connector 1: 1 x DisplayPort male
Connector 2: 1 x DisplayPort male
Technical characteristics
Data transfer rate: 21,6 Gb/s
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Cable diameter: 5.7 mm
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 30 AWG
Shielding: triple
Length: 5 m
Colour: black
Powered by TCPDF (www.tcpdf.org)
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
87827
2 / 2
26.07.2022
