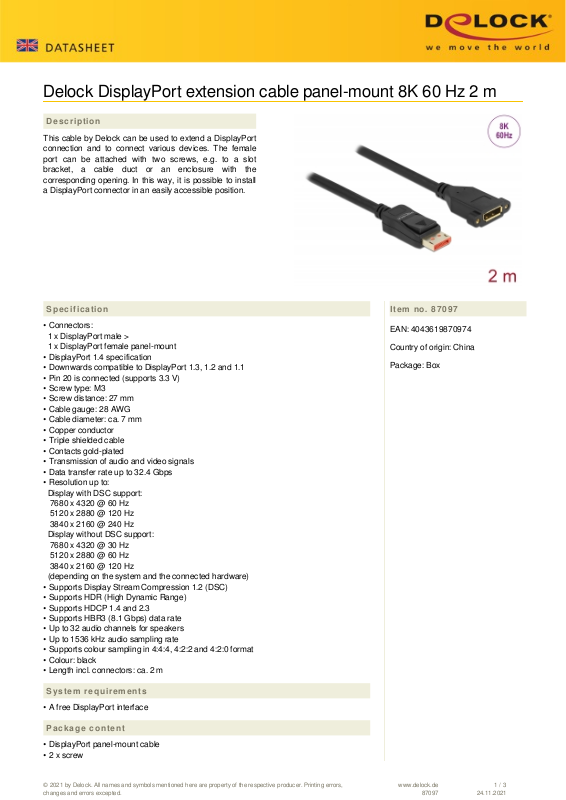

Delock DisplayPort extension cable panel-mount 8K 60 Hz 2 m
Description
This cable by Delock can be used to extend a DisplayPort
connection and to connect various devices. The female
port can be attached with two screws, e.g. to a slot
bracket, a cable duct or an enclosure with the
corresponding opening. In this way, it is possible to install
a DisplayPort connector in an easily accessible position.
Specification
• Connectors:
1 x DisplayPort male >
1 x DisplayPort female panel-mount
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 is connected (supports 3.3 V)
• Screw type: M3
• Screw distance: 27 mm
• Cable gauge: 28 AWG
• Cable diameter: ca. 7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
Display with DSC support:
7680 x 4320 @ 60 Hz
5120 x 2880 @ 120 Hz
3840 x 2160 @ 240 Hz
Display without DSC support:
7680 x 4320 @ 30 Hz
5120 x 2880 @ 60 Hz
3840 x 2160 @ 120 Hz
(depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.3
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 2 m
Item no. 87097
EAN: 4043619870974
Country of origin: China
Package: Box
System requirements
• A free DisplayPort interface
Package content
• DisplayPort panel-mount cable
• 2 x screw
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
87097
1 / 3
24.11.2021
Page 2

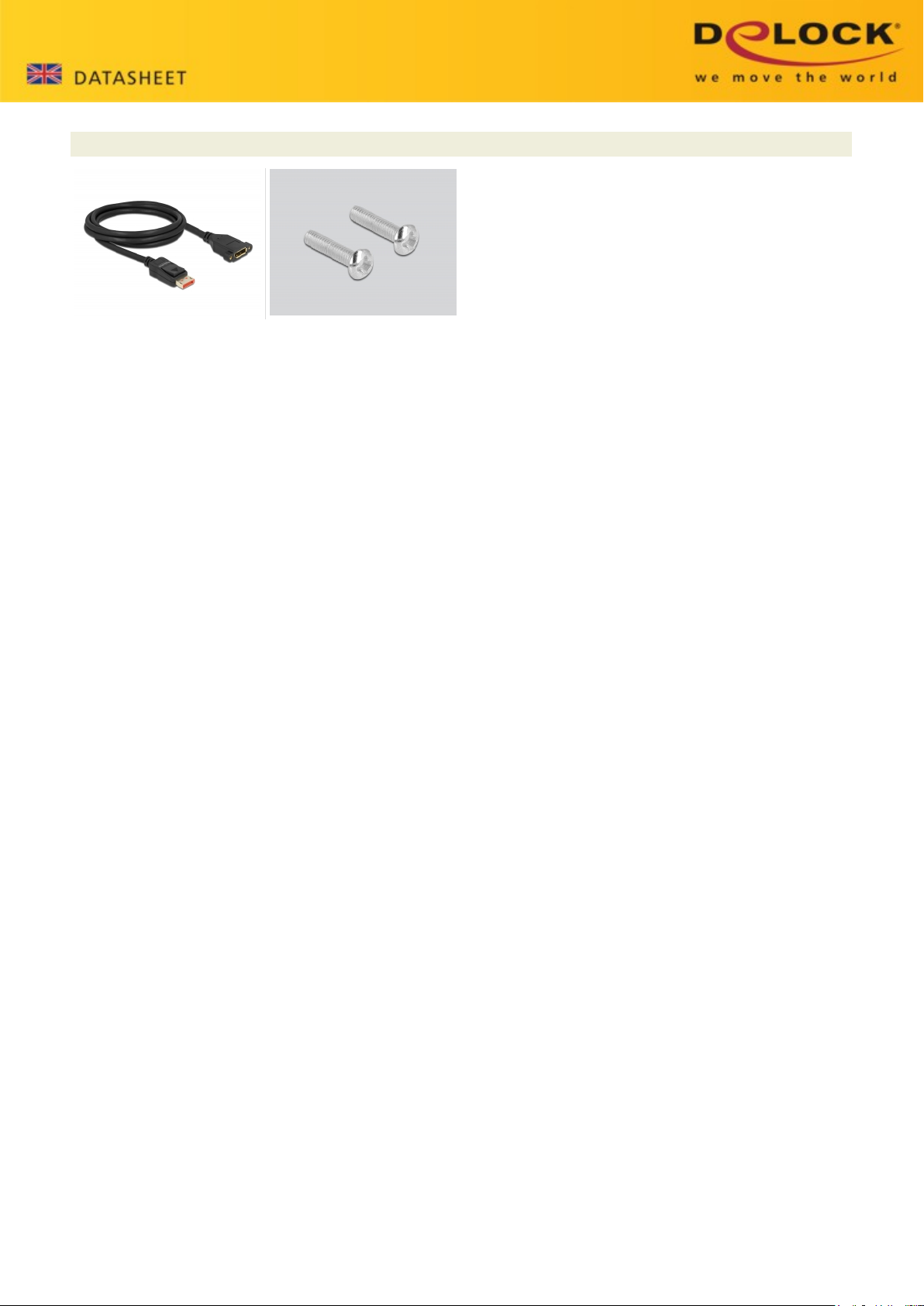

Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
87097
2 / 3
24.11.2021
Page 3
General
Specification: HDCP 1.4
DisplayPort 1.4
HDR
HDCP 2.3
Interface
Connector 1: 1 x DisplayPort male
Connector 2: 1 x DisplayPort female
Technical characteristics
Data transfer rate: 32.4 Gb/s
Maximum screen resolution: 7680 x 4320 @ 60 Hz
Physical characteristics
Cable diameter: 7 mm
Pin finishing: gold-plated
Conductor material: copper
Conductor gauge: 28 AWG
Screw distance: 27 mm
Screw type: M3
Shielding: triple
Length: 2 m
Colour: black
