DELOCK 86925 Datasheet

Page 1

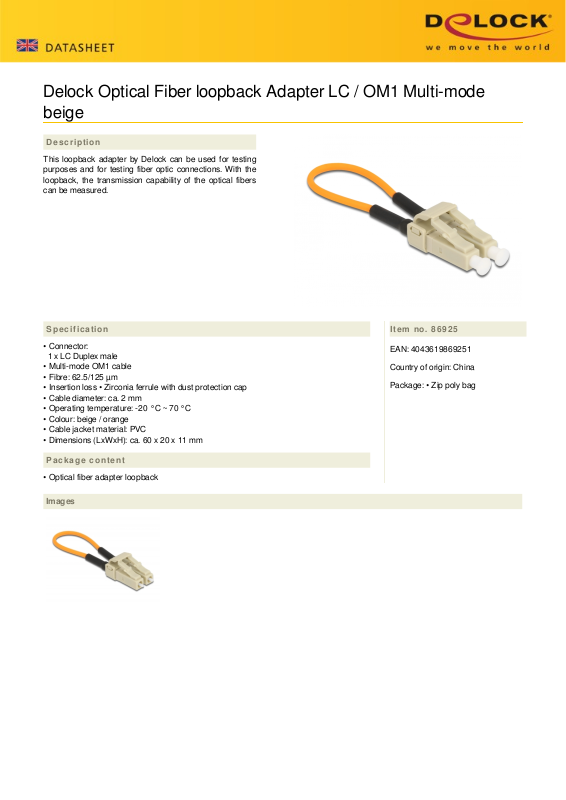

Delock Optical Fiber loopback Adapter LC / OM1 Multi-mode beige

Description

This loopback adapter by Delock can be used for testing purposes and for testing fiber optic connections. With the loopback, the transmission capability of the optical fibers can be measured.

Specification

• Connector: 1 x LC Duplex male

• Multi-mode OM1 cable

• Fibre: 62.5/125 µm

• Insertion loss • Zirconia ferrule with dust protection cap

• Cable diameter: ca. 2 mm

• Operating temperature: -20 °C ~ 70 °C

• Colour: beige / orange

• Cable jacket material: PVC

• Dimensions (LxWxH): ca. 60 x 20 x 11 mm

Item no. 86925

EAN: 4043619869251

Country of origin: China

Package: • Zip poly bag

Package content

• Optical fiber adapter loopback

Images

Page 2

General

Specification: OM1

Interface

connector: 1 x LC Duplex male

Technical characteristics

Operating temperature: -20 °C ~ 70 °C

Physical characteristics

Material: PVC Length: 60 mm Width: 20 mm Height: 11 mm Colour: beige / orange Cable diameter: 3 mm
