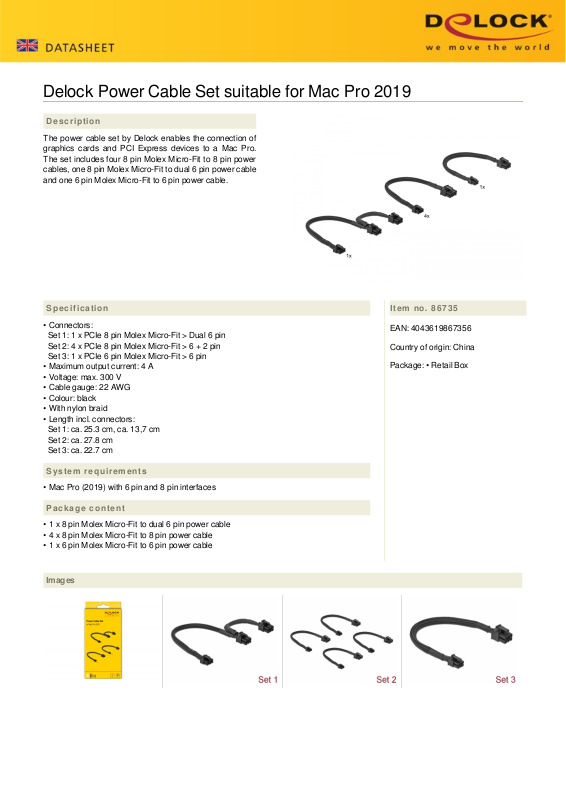

Delock Power Cable Set suitable for Mac Pro 2019
Description
The power cable set by Delock enables the connection of
graphics cards and PCI Express devices to a Mac Pro.
The set includes four 8 pin Molex Micro-Fit to 8 pin power
cables, one 8 pin Molex Micro-Fit to dual 6 pin power cable
and one 6 pin Molex Micro-Fit to 6 pin power cable.
Specification
• Connectors:
Set 1: 1 x PCIe 8 pin Molex Micro-Fit > Dual 6 pin
Set 2: 4 x PCIe 8 pin Molex Micro-Fit > 6 + 2 pin
Set 3: 1 x PCIe 6 pin Molex Micro-Fit > 6 pin
• Maximum output current: 4 A
• Voltage: max. 300 V
• Cable gauge: 22 AWG
• Colour: black
• With nylon braid
• Length incl. connectors:
Set 1: ca. 25.3 cm, ca. 13,7 cm
Set 2: ca. 27.8 cm
Set 3: ca. 22.7 cm
Item no. 86735
EAN: 4043619867356
Country of origin: China
Package: • Retail Box
System requirements
• Mac Pro (2019) with 6 pin and 8 pin interfaces
Package content
• 1 x 8 pin Molex Micro-Fit to dual 6 pin power cable
• 4 x 8 pin Molex Micro-Fit to 8 pin power cable
• 1 x 6 pin Molex Micro-Fit to 6 pin power cable
Images
Page 2
Interface
Connector 1: 1 x serial HD 44 female
Connector 2: 1 x serial HD 44 female
Physical characteristics
Cable diameter: 11.5 mm
Conductor gauge: 24 AWG
Screw distance: 47 mm
Screw type: #4-40 UNC
Length: 1 m
Colour: dark grey
