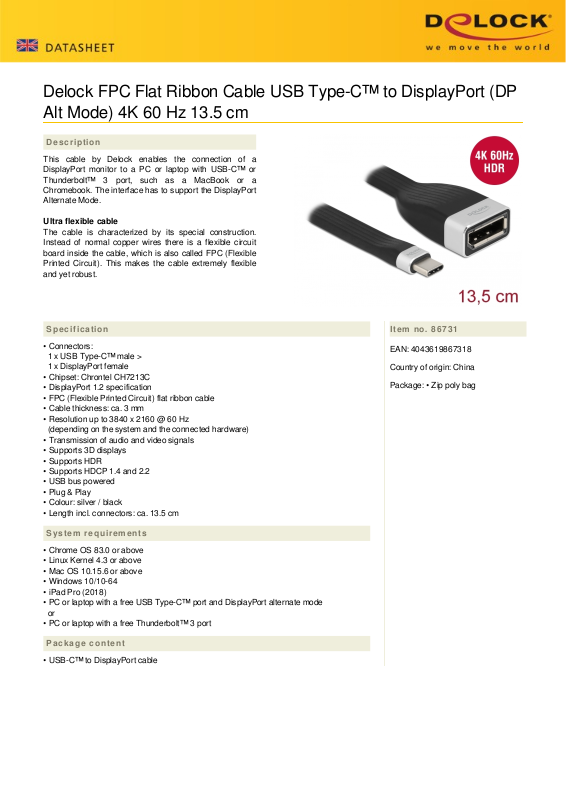

Delock FPC Flat Ribbon Cable USB Type-C™ to DisplayPort (DP
Alt Mode) 4K 60 Hz 13.5 cm
Description
This cable by Delock enables the connection of a
DisplayPort monitor to a PC or laptop with USB-C™ or
Thunderbolt™ 3 port, such as a MacBook or a
Chromebook. The interface has to support the DisplayPort
Alternate Mode.
Ultra flexible cable
The cable is characterized by its special construction.
Instead of normal copper wires there is a flexible circuit
board inside the cable, which is also called FPC (Flexible
Printed Circuit). This makes the cable extremely flexible
and yet robust.
Specification
• Connectors:
1 x USB Type-C™ male >
1 x DisplayPort female
• Chipset: Chrontel CH7213C
• DisplayPort 1.2 specification
• FPC (Flexible Printed Circuit) flat ribbon cable
• Cable thickness: ca. 3 mm
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• USB bus powered
• Plug & Play
• Colour: silver / black
• Length incl. connectors: ca. 13.5 cm
Item no. 86731
EAN: 4043619867318
Country of origin: China
Package: • Zip poly bag
System requirements
• Chrome OS 83.0 or above
• Linux Kernel 4.3 or above
• Mac OS 10.15.6 or above
• Windows 10/10-64
• iPad Pro (2018)
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ to DisplayPort cable
Page 2

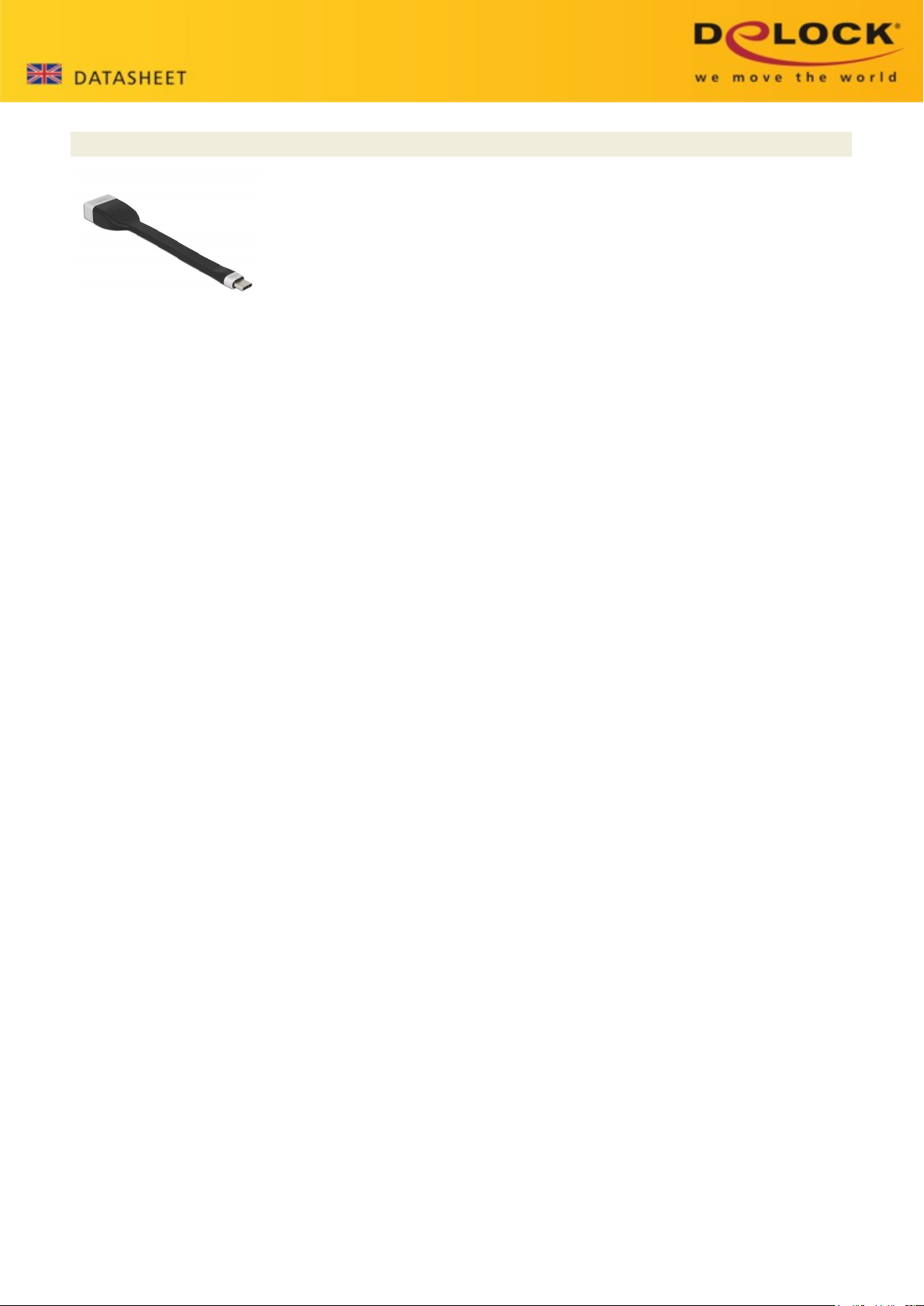

Images
Page 3
General
Specification: DisplayPort 1.2
HDCP 1.4
HDCP 2.2
HDR
Supported operating system: Chrome OS 83.0 or above
Linux Kernel 4.3 or above
Mac OS 10.15.6 or above
Windows 10 32-bit
Windows 10 64-bit
Style: Flat cable
Interface
Connector 1: 1 x USB Type-C™ male
Connector 2: 1 x DisplayPort female
Technical characteristics
Chipset: Chrontel CH7213C
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Length: 135 mm
Colour: black
