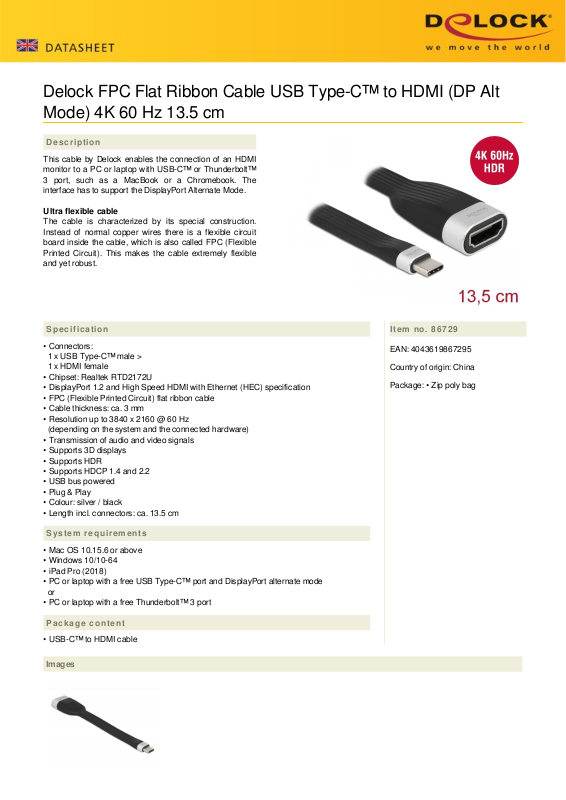

Page 1
Delock FPC Flat Ribbon Cable USB Type-C™ to HDMI (DP Alt
Mode) 4K 60 Hz 13.5 cm
Description
This cable by Delock enables the connection of an HDMI
monitor to a PC or laptop with USB-C™ or Thunderbolt™
3 port, such as a MacBook or a Chromebook. The
interface has to support the DisplayPort Alternate Mode.
Ultra flexible cable
The cable is characterized by its special construction.
Instead of normal copper wires there is a flexible circuit
board inside the cable, which is also called FPC (Flexible
Printed Circuit). This makes the cable extremely flexible
and yet robust.
Specification
• Connectors:
1 x USB Type-C™ male >
1 x HDMI female
• Chipset: Realtek RTD2172U
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• FPC (Flexible Printed Circuit) flat ribbon cable
• Cable thickness: ca. 3 mm
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• USB bus powered
• Plug & Play
• Colour: silver / black
• Length incl. connectors: ca. 13.5 cm
Item no. 86729
EAN: 4043619867295
Country of origin: China
Package: • Zip poly bag
System requirements
• Mac OS 10.15.6 or above
• Windows 10/10-64
• iPad Pro (2018)
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ to HDMI cable
Images
Page 2
General
Specification: DisplayPort 1.2
High Speed HDMI with Ethernet
HDCP 1.4
HDCP 2.2
HDR
Supported operating system: Mac OS 10.15.6 or above
Windows 10 32-bit
Windows 10 64-bit
Style: Flat cable
Interface
Connector 1: 1 x USB Type-C™ male
Connector 2: 1 x HDMI-A female
Technical characteristics
Chipset: Realtek RTD2172U
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Length: 13.5 cm
Colour: black
