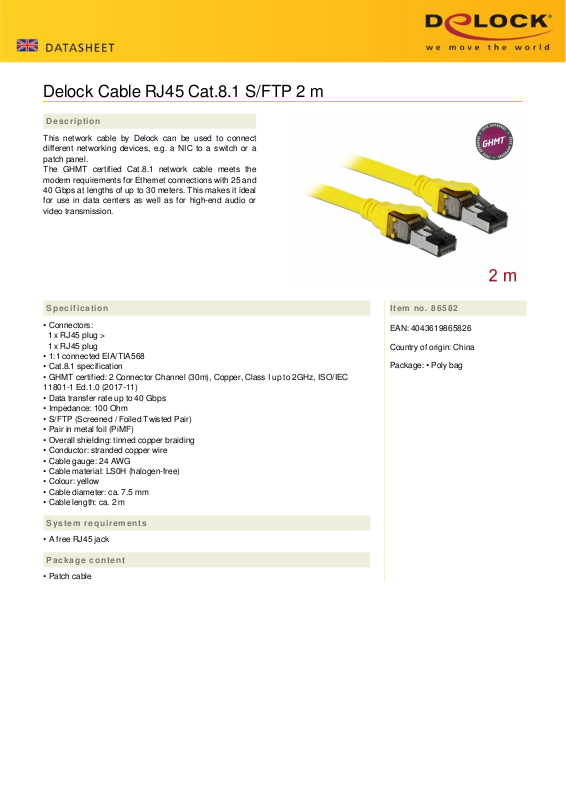

Delock Cable RJ45 Cat.8.1 S/FTP 2 m
Description
This network cable by Delock can be used to connect
different networking devices, e.g. a NIC to a switch or a
patch panel.
The GHMT certified Cat.8.1 network cable meets the
modern requirements for Ethernet connections with 25 and
40 Gbps at lengths of up to 30 meters. This makes it ideal
for use in data centers as well as for high-end audio or
video transmission.
Specification
• Connectors:
1 x RJ45 plug >
1 x RJ45 plug
• 1:1 connected EIA/TIA568
• Cat.8.1 specification
• GHMT certified: 2 Connector Channel (30m), Copper, Class I up to 2GHz, ISO/IEC
11801-1 Ed.1.0 (2017-11)
• Data transfer rate up to 40 Gbps
• Impedance: 100 Ohm
• S/FTP (Screened / Foiled Twisted Pair)
• Pair in metal foil (PiMF)
• Overall shielding: tinned copper braiding
• Conductor: stranded copper wire
• Cable gauge: 24 AWG
• Cable material: LS0H (halogen-free)
• Colour: yellow
• Cable diameter: ca. 7.5 mm
• Cable length: ca. 2 m
Item no. 86582
EAN: 4043619865826
Country of origin: China
Package: • Poly bag
System requirements
• A free RJ45 jack
Package content
• Patch cable
Page 2
General
Specification: Cat. 8.1
Interface
Connector 1: 1 x RJ45 male
Connector 2: 1 x RJ45 plug
Physical characteristics
Cable colour: yellow
Cable diameter: 7.5 mm
Cable length incl. connector: 2 m
Conductor material: copper
Conductor gauge: 24 AWG
Shielding: S/FTP
