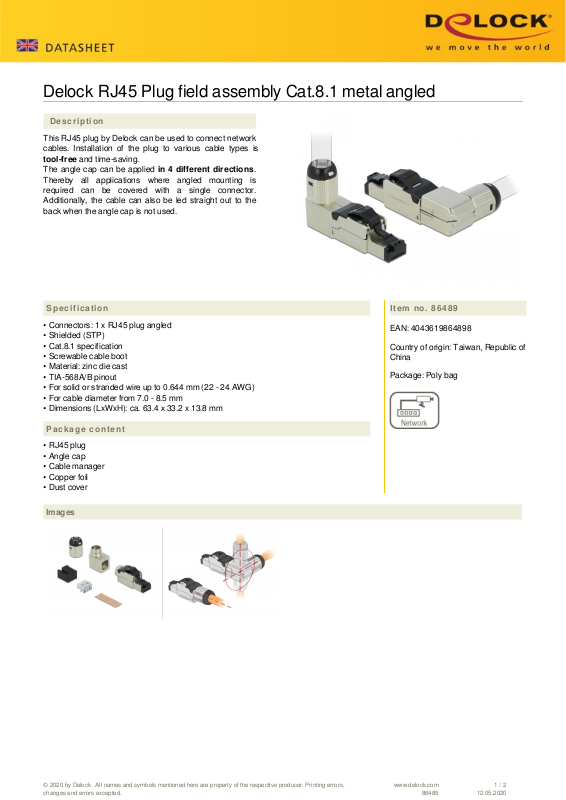

Page 1
Delock RJ45 Plug field assembly Cat.8.1 metal angled
Description
This RJ45 plug by Delock can be used to connect network
cables. Installation of the plug to various cable types is
tool-free and time-saving.
The angle cap can be applied in 4 different directions.
Thereby all applications where angled mounting is
required can be covered with a single connector.
Additionally, the cable can also be led straight out to the
back when the angle cap is not used.
Specification
• Connectors: 1 x RJ45 plug angled
• Shielded (STP)
• Cat.8.1 specification
• Screwable cable boot
• Material: zinc die cast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.644 mm (22 - 24 AWG)
• For cable diameter from 7.0 - 8.5 mm
• Dimensions (LxWxH): ca. 63.4 x 33.2 x 13.8 mm
Item no. 86489
EAN: 4043619864898
Country of origin: Taiwan, Republic of
China
Package: Poly bag
Package content
• RJ45 plug
• Angle cap
• Cable manager
• Copper foil
• Dust cover
Images
© 2020 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
86489
1 / 2
12.05.2020
Page 2
General
Suitable for conductor gauge: 22 - 24 AWG
Interface
External: 1 x RJ45 plug angled
Internal: 1 x LSA block
Technical characteristics
Category: Cat.8.1
Shielding: shielded
Physical characteristics
Housing material: zinc die cast
Length: 63.4 mm
Width: 33.2 mm
Height: 13.8 mm
