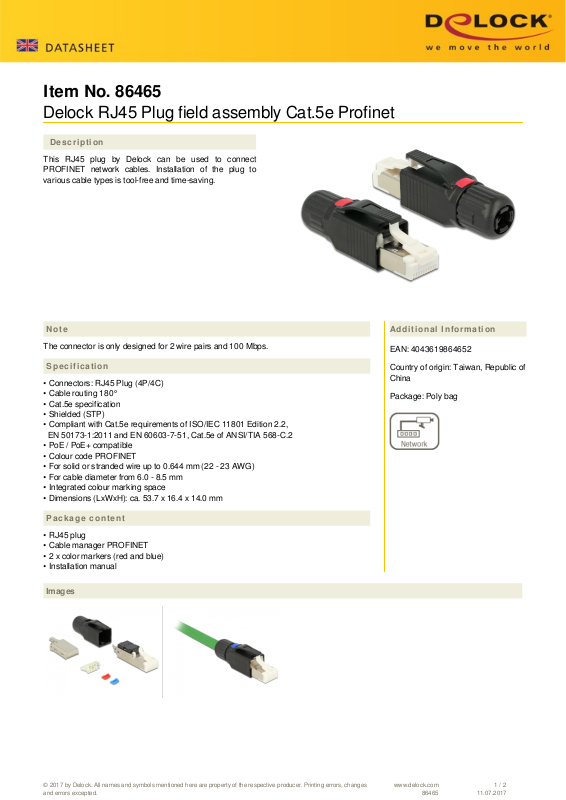

Page 1
Item No. 86465
Delock RJ45 Plug field assembly Cat.5e Profinet
Description
This RJ45 plug by Delock can be used to connect
PROFINET network cables. Installation of the plug to
various cable types is tool-free and time-saving.
Note
The connector is only designed for 2 wire pairs and 100 Mbps.
Specification
• Connectors: RJ45 Plug (4P/4C)
• Cable routing 180°
• Cat.5e specification
• Shielded (STP)
• Compliant with Cat.5e requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.5e of ANSI/TIA 568-C.2
• PoE / PoE+ compatible
• Colour code PROFINET
• For solid or stranded wire up to 0.644 mm (22 - 23 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Integrated colour marking space
• Dimensions (LxWxH): ca. 53.7 x 16.4 x 14.0 mm
Additional Information
EAN: 4043619864652
Country of origin: Taiwan, Republic of
China
Package: Poly bag
Package content
• RJ45 plug
• Cable manager PROFINET
• 2 x color markers (red and blue)
• Installation manual
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
86465
1 / 2
11.07.2017
Page 2
General
Suitable for conductor gauge: 22 - 23 AWG
Interface
External: 1 x RJ45 plug
Internal: 1 x LSA block
Technical characteristics
Category: Cat.5e
Shielding: shielded
Physical characteristics
Housing material: metal
Length: 53.7 mm
Width: 16.4 mm
Height: 14 mm
Powered by TCPDF (www.tcpdf.org)
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
86465
2 / 2
11.07.2017
