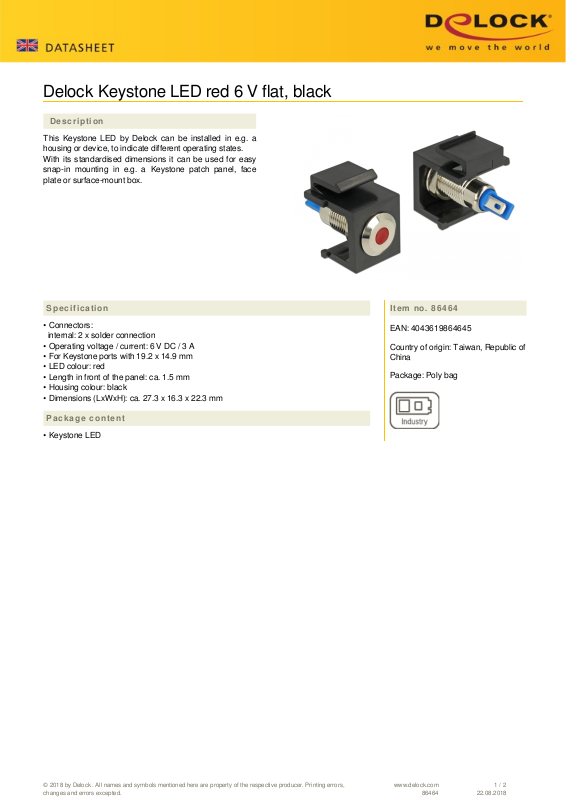

Delock Keystone LED red 6 V flat, black
Description
This Keystone LED by Delock can be installed in e.g. a
housing or device, to indicate different operating states.
With its standardised dimensions it can be used for easy
snap-in mounting in e.g. a Keystone patch panel, face
plate or surface-mount box.
Specification
• Connectors:
internal: 2 x solder connection
• Operating voltage / current: 6 V DC / 3 A
• For Keystone ports with 19.2 x 14.9 mm
• LED colour: red
• Length in front of the panel: ca. 1.5 mm
• Housing colour: black
• Dimensions (LxWxH): ca. 27.3 x 16.3 x 22.3 mm
Item no. 86464
EAN: 4043619864645
Country of origin: Taiwan, Republic of
China
Package: Poly bag
Package content
• Keystone LED
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
86464
1 / 2
22.08.2018
Page 2
General
Mounting type: Keystone module
Interface
Internal: 2 x solder connection
Technical characteristics
Operating voltage: 6 V DC / 3 A
Physical characteristics
Housing colour: black
Length: 27.3 mm
Width: 16.3 mm
Height: 22.3 mm
LED colour: red
