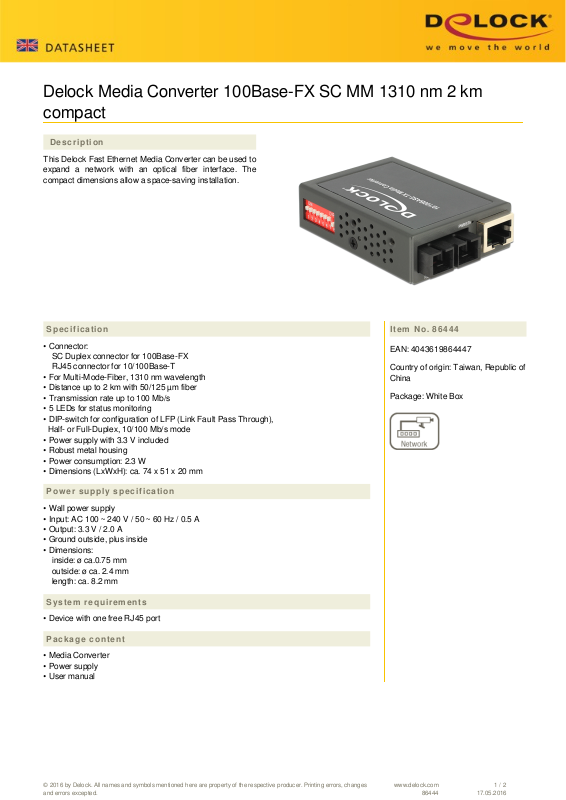

Delock Media Converter 100Base-FX SC MM 1310 nm 2 km
compact
Description
This Delock Fast Ethernet Media Converter can be used to
expand a network with an optical fiber interface. The
compact dimensions allow a space-saving installation.
Specification
• Connector:
SC Duplex connector for 100Base-FX
RJ45 connector for 10/100Base-T
• For Multi-Mode-Fiber, 1310 nm wavelength
• Distance up to 2 km with 50/125 µm fiber
• Transmission rate up to 100 Mb/s
• 5 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100 Mb/s mode
• Power supply with 3.3 V included
• Robust metal housing
• Power consumption: 2.3 W
• Dimensions (LxWxH): ca. 74 x 51 x 20 mm
Item No. 86444
EAN: 4043619864447
Country of origin: Taiwan, Republic of
China
Package: White Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 3.3 V / 2.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca.0.75 mm
outside: ø ca. 2.4 mm
length: ca. 8.2 mm
System requirements
• Device with one free RJ45 port
Package content
• Media Converter
• Power supply
• User manual
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
86444
1 / 2
17.05.2016
Page 2

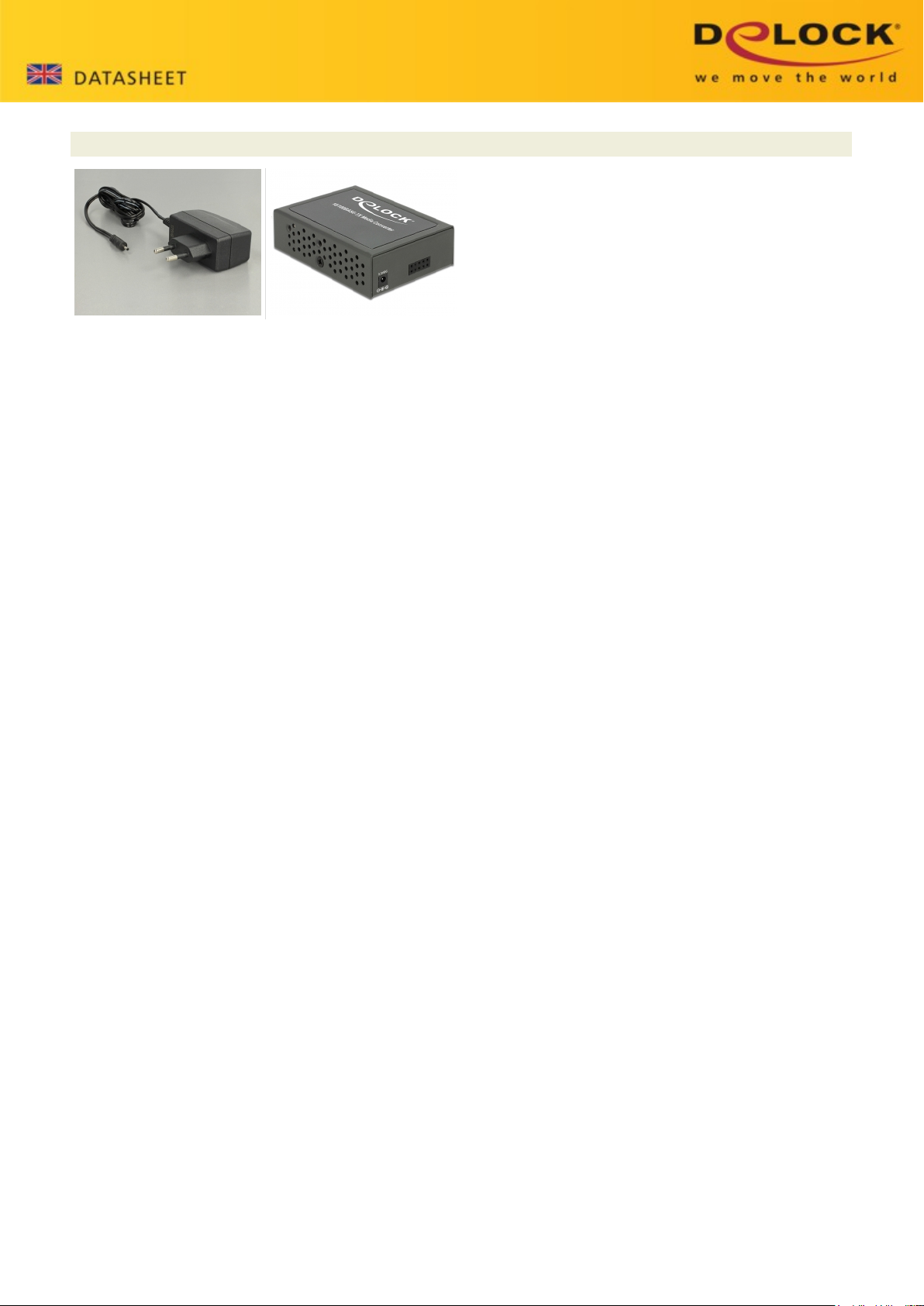

Images
