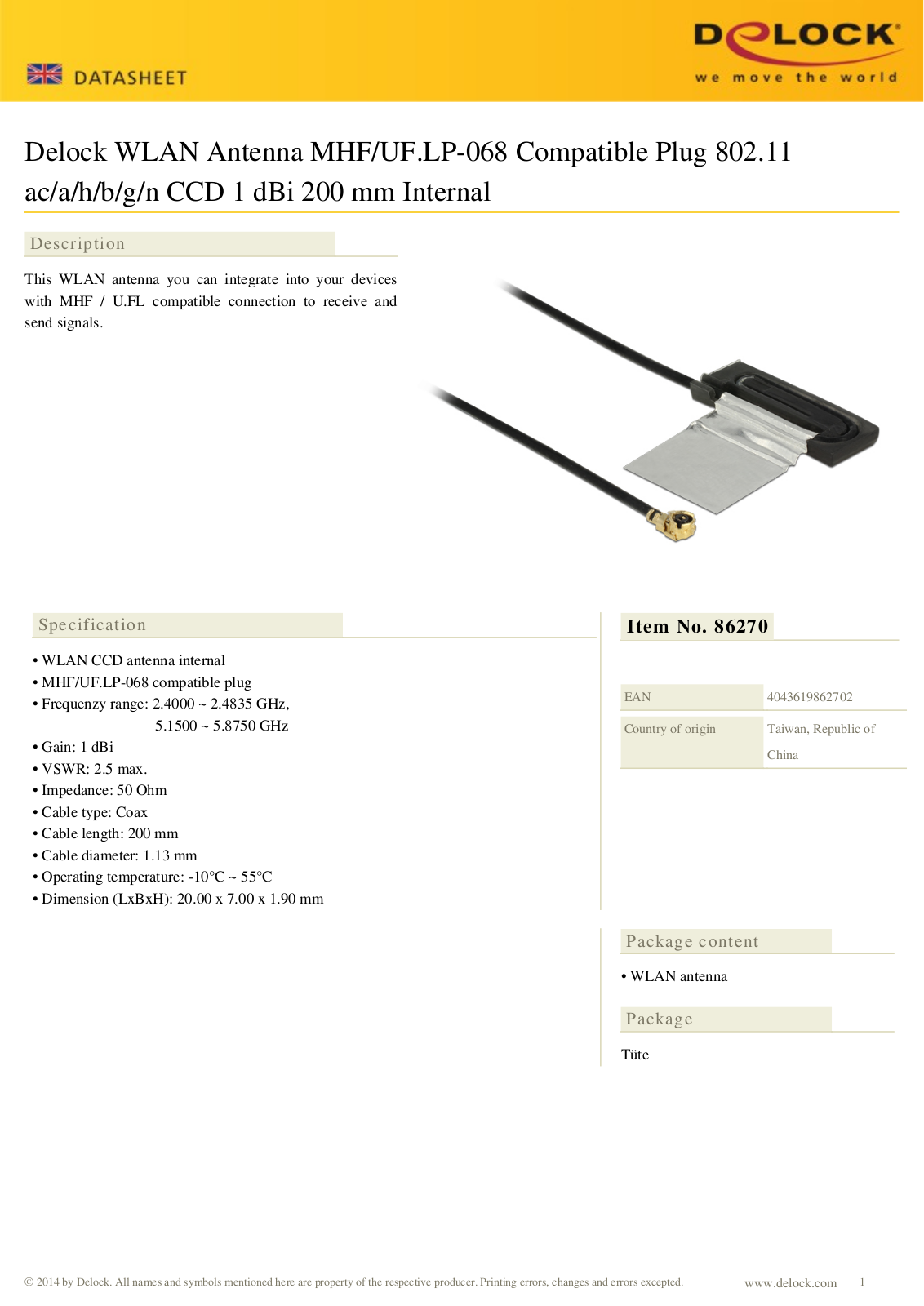

Page 1
Delock WLAN Antenna MHF/UF.LP-068 Compatible Plug 802.11
ac/a/h/b/g/n CCD 1 dBi 200 mm Internal
Description
This WLAN antenna you can integrate into your devices
with MHF / U.FL compatible connection to receive and
send signals.
Specification
• WLAN CCD antenna internal
• MHF/UF.LP-068 compatible plug
• Frequenzy range: 2.4000 ~ 2.4835 GHz,
5.1500 ~ 5.8750 GHz
• Gain: 1 dBi
• VSWR: 2.5 max.
• Impedance: 50 Ohm
• Cable type: Coax
• Cable length: 200 mm
• Cable diameter: 1.13 mm
• Operating temperature: -10°C ~ 55°C
• Dimension (LxBxH): 20.00 x 7.00 x 1.90 mm
Item No. 86270
EAN
Country of origin
4043619862702
Taiwan, Republic of
China
Package content
• WLAN antenna
Package
Tüte
© 2014 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1

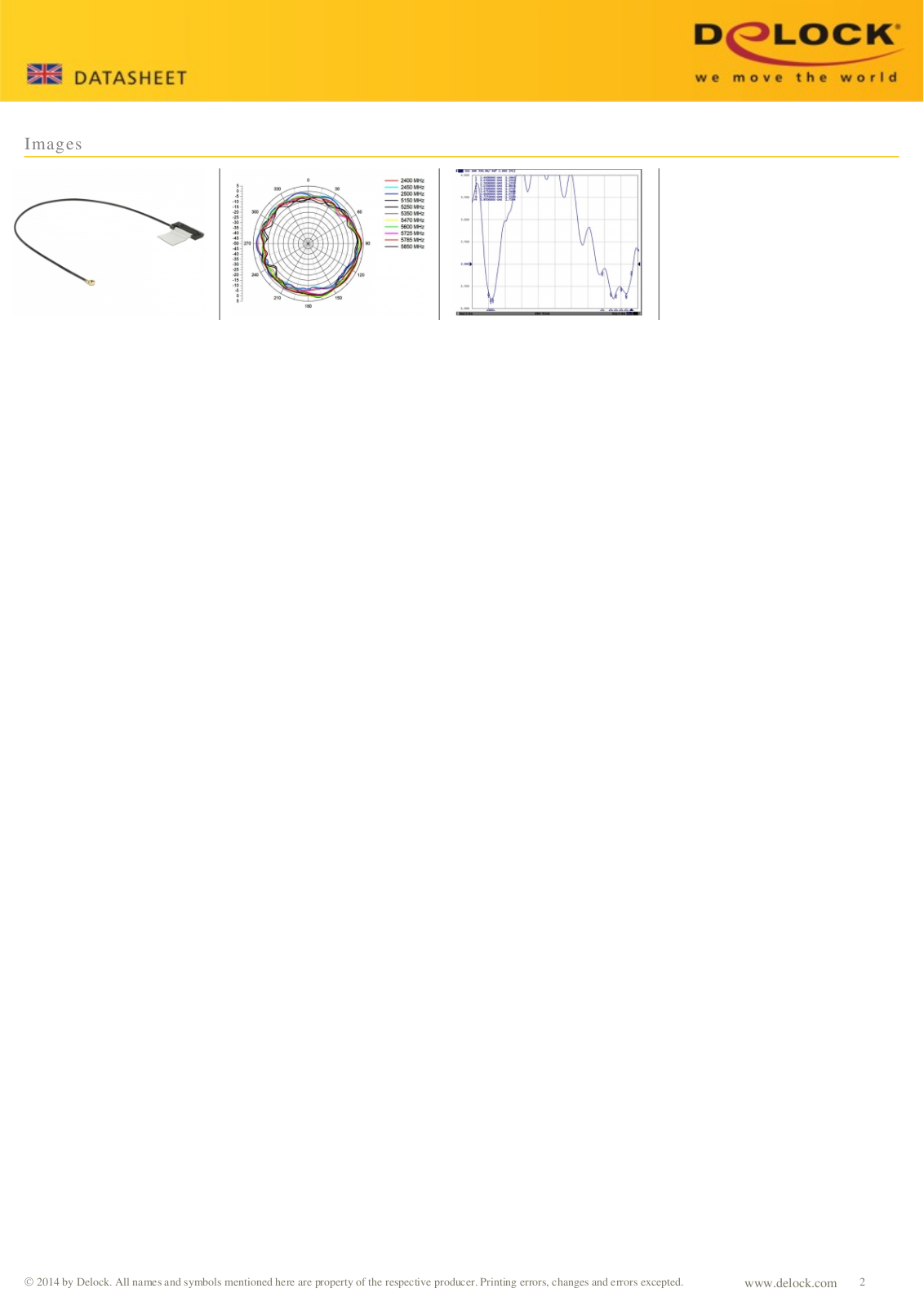

Page 2
Images
