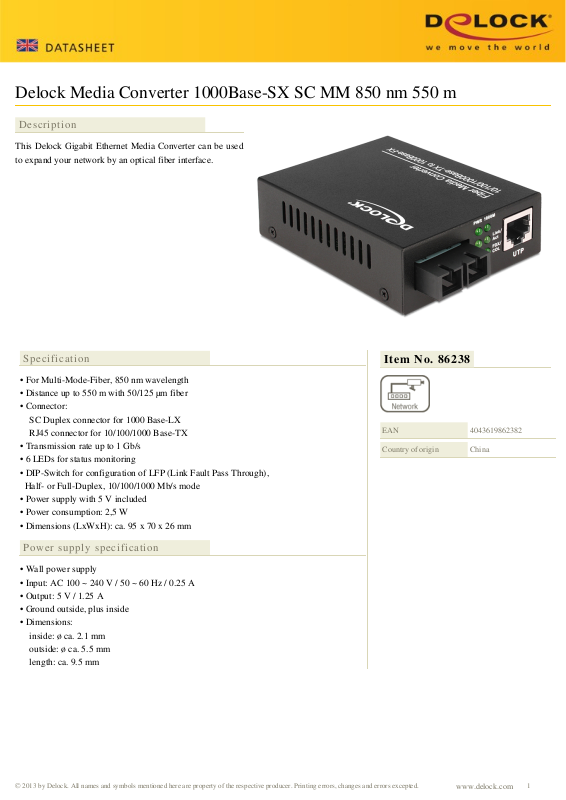

DeLOCK 86238 User Manual

Delock Media Converter 1000Base-SX SC MM 850 nm 550 m

Description

This Delock Gigabit Ethernet Media Converter can be used
to expand your network by an optical fiber interface.

Specification

• For Multi-Mode-Fiber, 850 nm wavelength

• Distance up to 550 m with 50/125 µm fiber

• Connector:
SC Duplex connector for 1000 Base-LX
RJ45 connector for 10/100/1000 Base-TX

• Transmission rate up to 1 Gb/s

• 6 LEDs for status monitoring

• DIP-Switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100/1000 Mb/s mode

• Power supply with 5 V included

• Power consumption: 2,5 W

• Dimensions (LxWxH): ca. 95 x 70 x 26 mm

Power supply specification

Item No. 86238

EAN

Country of origin

4043619862382

China

• Wall power supply

• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.25 A

• Output: 5 V / 1.25 A

• Ground outside, plus inside

• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.

www.delock.com

1

Images

Package content

• Media Converter

• Power supply

• User manual

Package

• White Box
