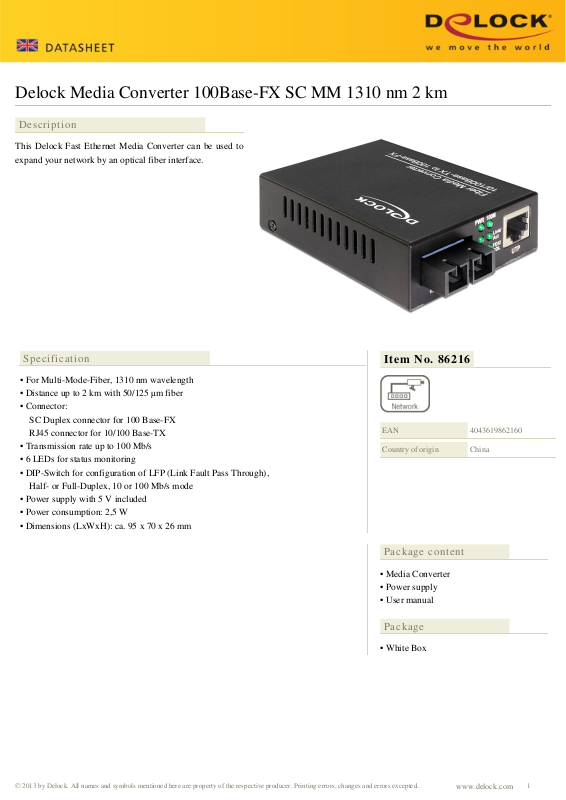

DeLOCK 86216 User Manual
Delock Media Converter 100Base-FX SC MM 1310 nm 2 km
Description
This Delock Fast Ethernet Media Converter can be used to
expand your network by an optical fiber interface.
Specification
• For Multi-Mode-Fiber, 1310 nm wavelength
• Distance up to 2 km with 50/125 µm fiber
• Connector:
SC Duplex connector for 100 Base-FX
RJ45 connector for 10/100 Base-TX
• Transmission rate up to 100 Mb/s
• 6 LEDs for status monitoring
• DIP-Switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10 or 100 Mb/s mode
• Power supply with 5 V included
• Power consumption: 2,5 W
• Dimensions (LxWxH): ca. 95 x 70 x 26 mm
Item No. 86216
EAN
Country of origin
4043619862160
China
Package content
• Media Converter
• Power supply
• User manual
Package
• White Box
