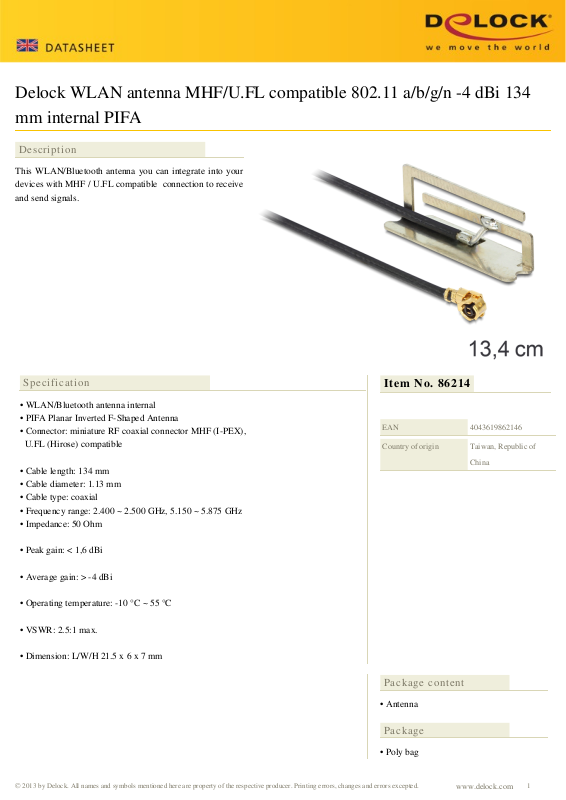

Delock WLAN antenna MHF/U.FL compatible 802.11 a/b/g/n -4 dBi 134
mm internal PIFA

Description

This WLAN/Bluetooth antenna you can integrate into your
devices with MHF / U.FL compatible connection to receive
and send signals.

Specification

• WLAN/Bluetooth antenna internal

• PIFA Planar Inverted F-Shaped Antenna

• Connector: miniature RF coaxial connector MHF (I-PEX),
U.FL (Hirose) compatible

• Cable length: 134 mm

• Cable diameter: 1.13 mm

• Cable type: coaxial

• Frequency range: 2.400 ~ 2.500 GHz, 5.150 ~ 5.875 GHz

• Impedance: 50 Ohm

Item No. 86214

EAN

Country of origin

4043619862146

Taiwan, Republic of
China

• Peak gain: < 1,6 dBi

• Average gain: > -4 dBi

• Operating temperature: -10 °C ~ 55 °C

• VSWR: 2.5:1 max.

• Dimension: L/W/H 21.5 x 6 x 7 mm

Package content

• Antenna

Package

• Poly bag
