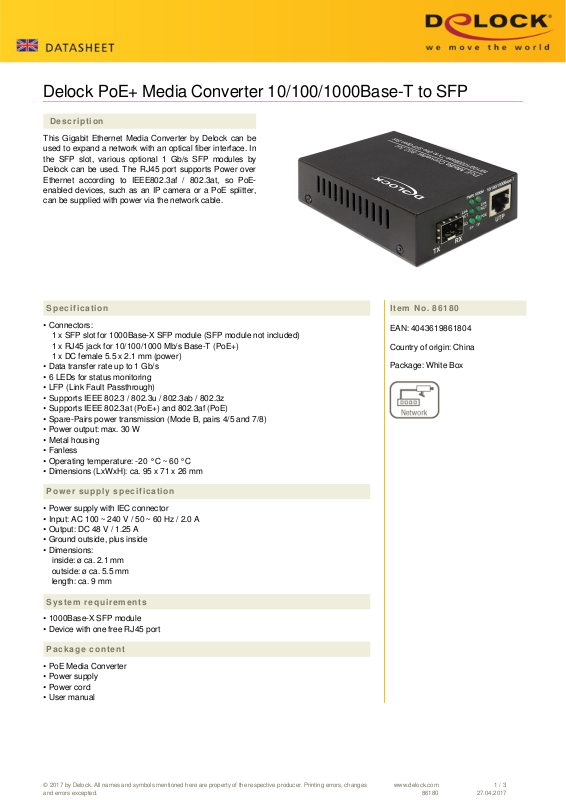

Delock PoE+ Media Converter 10/100/1000Base-T to SFP
Description
This Gigabit Ethernet Media Converter by Delock can be
used to expand a network with an optical fiber interface. In
the SFP slot, various optional 1 Gb/s SFP modules by
Delock can be used. The RJ45 port supports Power over
Ethernet according to IEEE802.3af / 802.3at, so PoEenabled devices, such as an IP camera or a PoE splitter,
can be supplied with power via the network cable.
Specification
• Connectors:
1 x SFP slot for 1000Base-X SFP module (SFP module not included)
1 x RJ45 jack for 10/100/1000 Mb/s Base-T (PoE+)
1 x DC female 5.5 x 2.1 mm (power)
• Data transfer rate up to 1 Gb/s
• 6 LEDs for status monitoring
• LFP (Link Fault Passthrough)
• Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3z
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Spare-Pairs power transmission (Mode B, pairs 4/5 and 7/8)
• Power output: max. 30 W
• Metal housing
• Fanless
• Operating temperature: -20 °C ~ 60 °C
• Dimensions (LxWxH): ca. 95 x 71 x 26 mm
Item No. 86180
EAN: 4043619861804
Country of origin: China
Package: White Box
Power supply specification
• Power supply with IEC connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.0 A
• Output: DC 48 V / 1.25 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• 1000Base-X SFP module
• Device with one free RJ45 port
Package content
• PoE Media Converter
• Power supply
• Power cord
• User manual
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
86180
1 / 3
27.04.2017
Page 2

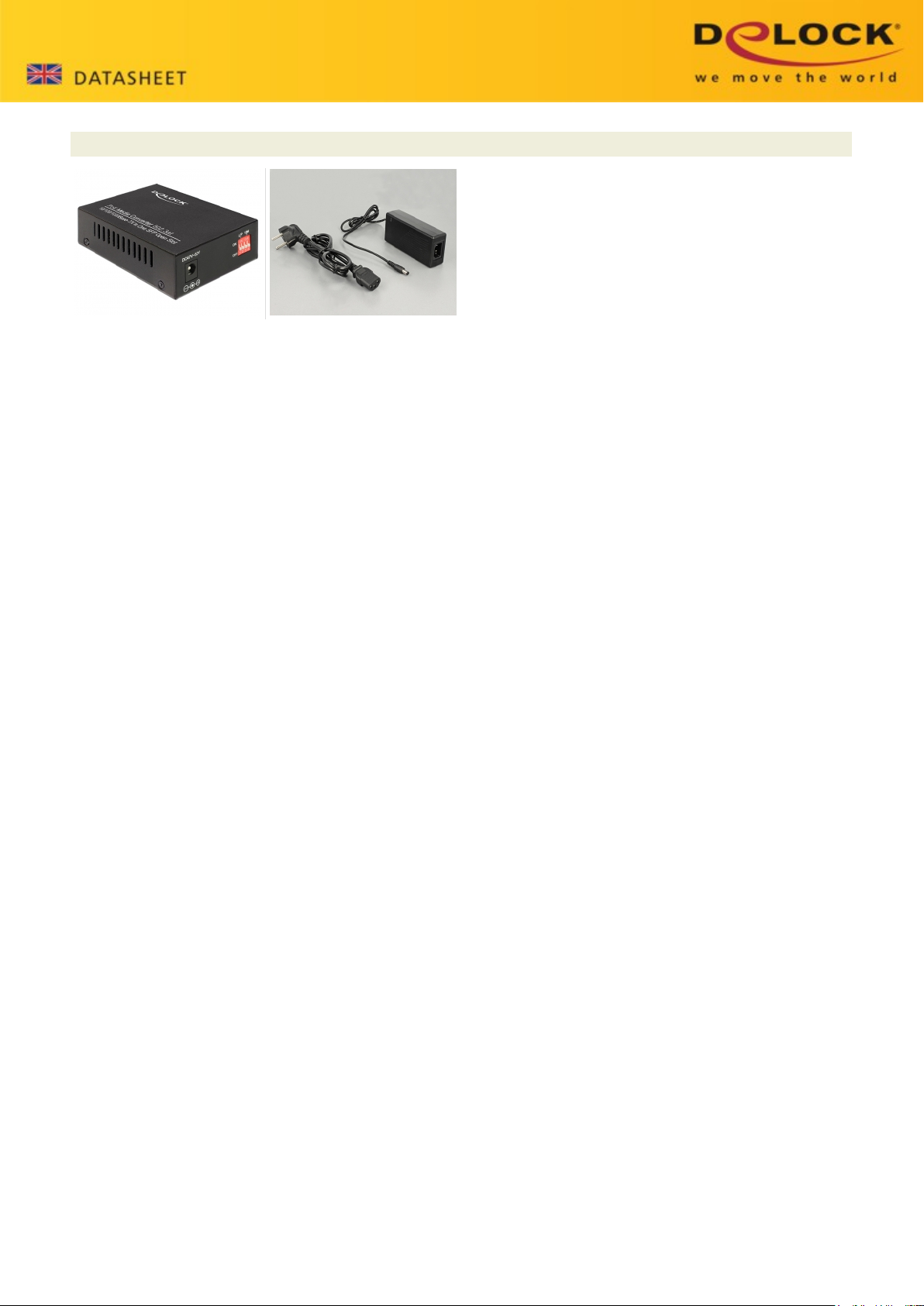

Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
86180
2 / 3
27.04.2017
Page 3
Interface
Output: 1 x RJ45 female (PoE)
Input: 1 x 5 V DC female 5,5 mm x 2,1 mm
1 x SFP slot
Technical characteristics
Data transfer rate: Gigabit Ethernet up to 1 Gbps
Physical characteristics
Housing colour: black
Housing material: metal
Length: 95 mm
Width: 70 mm
Height: 26 mm
Power supply
Type: Power supply with IEC connector
Input: AC 100 - 240 V / 50 - 60 Hz / 2.0 A
Output: 48 V / 1.25 A
Connector: DC male 5.5 mm x 2.1 mm
