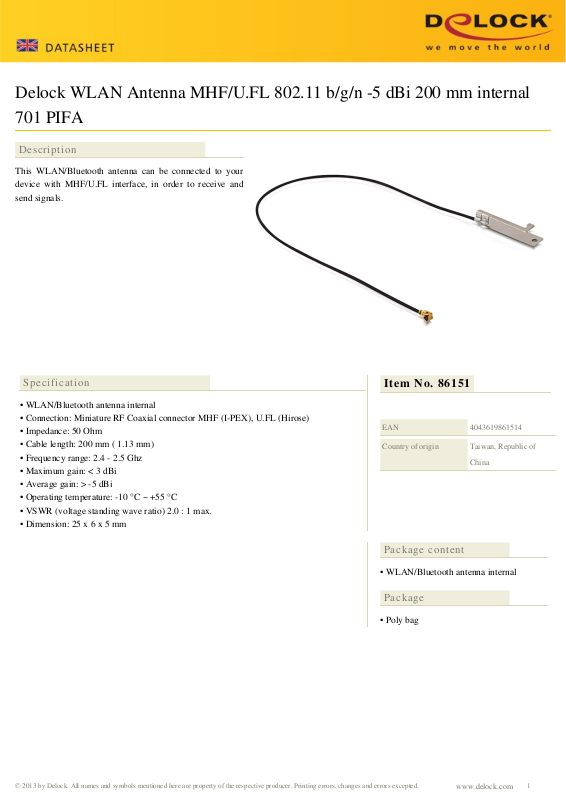

DeLOCK 86151 User Manual

Delock WLAN Antenna MHF/U.FL 802.11 b/g/n -5 dBi 200 mm internal
701 PIFA

Description

This WLAN/Bluetooth antenna can be connected to your
device with MHF/U.FL interface, in order to receive and
send signals.

Specification

• WLAN/Bluetooth antenna internal

• Connection: Miniature RF Coaxial connector MHF (I-PEX), U.FL (Hirose)

• Impedance: 50 Ohm

• Cable length: 200 mm ( 1.13 mm)

• Frequency range: 2.4 - 2.5 Ghz

• Maximum gain: < 3 dBi

• Average gain: > -5 dBi

• Operating temperature: -10 °C ~ +55 °C

• VSWR (voltage standing wave ratio) 2.0 : 1 max.

• Dimension: 25 x 6 x 5 mm

Item No. 86151

EAN

Country of origin

4043619861514

Taiwan, Republic of
China

Package content

• WLAN/Bluetooth antenna internal

Package

• Poly bag
