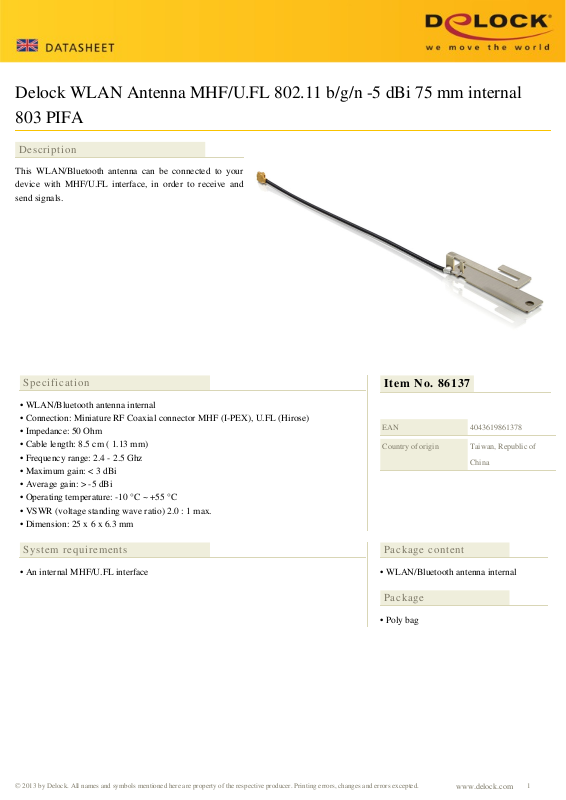

Delock WLAN Antenna MHF/U.FL 802.11 b/g/n -5 dBi 75 mm internal
803 PIFA

Description

This WLAN/Bluetooth antenna can be connected to your
device with MHF/U.FL interface, in order to receive and
send signals.

Specification

• WLAN/Bluetooth antenna internal

• Connection: Miniature RF Coaxial connector MHF (I-PEX), U.FL (Hirose)

• Impedance: 50 Ohm

• Cable length: 8.5 cm ( 1.13 mm)

• Frequency range: 2.4 - 2.5 Ghz

• Maximum gain: < 3 dBi

• Average gain: > -5 dBi

• Operating temperature: -10 °C ~ +55 °C

• VSWR (voltage standing wave ratio) 2.0 : 1 max.

• Dimension: 25 x 6 x 6.3 mm

Item No. 86137

EAN

Country of origin

4043619861378

Taiwan, Republic of
China

System requirements

• An internal MHF/U.FL interface

Package content

• WLAN/Bluetooth antenna internal

Package

• Poly bag
